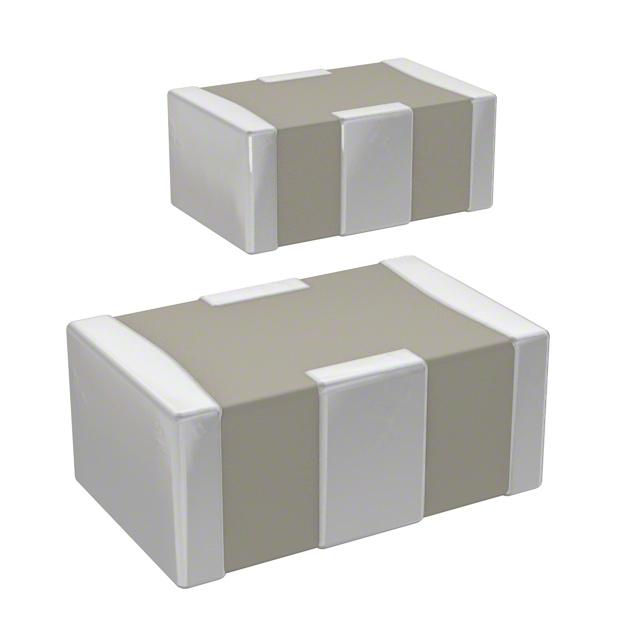

Same model may have multiple batches, images only for reference.
NFM21HC471R1H3D Murata Electronics North America
Same model may have multiple batches, images only for reference.

NFM21HC471R1H3D

Part No NFM21HC471R1H3D
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC HIGH FREQ 470PF 0805
Datasheet
NFM21HC471R1H3D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - EMI/RFI Filters (LC, RC Networks)
Mfr Murata Electronics North America
Series EMIFIL®, NFM21H
Package Tape & Reel
Product Status Active
Type Low Pass
Filter Order 2nd
Technology LC (T-Type)
Number of Channels 1
Current 1 A
Values C = 470pF
ESD Protection No
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.037" (0.95mm)
Base Product Number NFM21HC
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 252541-NFM21HC471R1H3D
Ultra Librarian 3D Model Ultra Librarian NFM21HC471R1H3D CAD Model

Description

The NFM21HC471R1H3D is a low pass EMI/RFI filter from the EMIFIL® series by Murata Electronics.

  • Application: Automotive
  • Current Rating: 1 A
  • Resistance Value: 470pF
  • Technology: LC (T-Type)
  • Filter Order: 2nd
  • Package Size: 0805 (2012 Metric)
  • Height: 0.037" (0.95mm)
  • Operating Temperature Range: -55°C to 125°C
  • Packaging: Tape & reel
  • Standard Package: 4,000 pcs
  • Status: Active
  • Manufacturer: Murata Electronics
