Same model may have multiple batches, images only for reference.

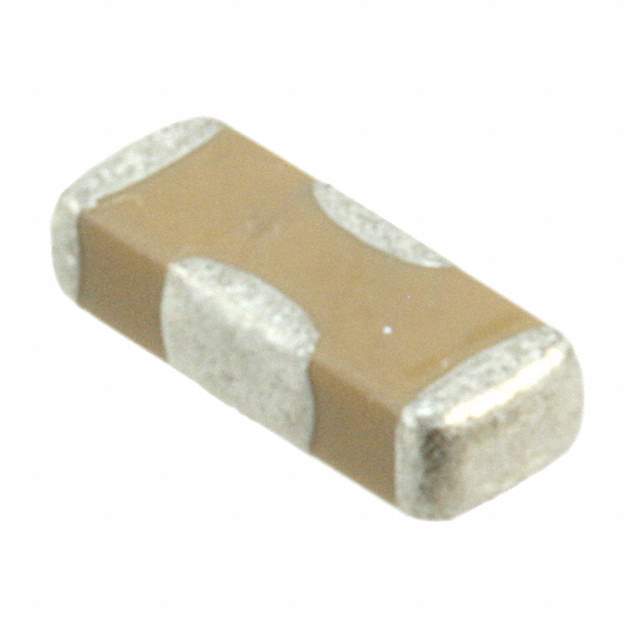

NFM3DCC470U1H3L Real Image
Same model may have multiple batches, images only for reference.

NFM3DCC470U1H3L

Part No NFM3DCC470U1H3L
Manufacturer Murata Electronics North America
Catalog Feed Through Capacitors
Description CAP FEEDTHRU 47PF 50V 1205
Datasheet
NFM3DCC470U1H3L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Capacitance 47pF
Tolerance -20%, +50%
Voltage Rating 50V
Current 300mA
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.049" W (3.20mm x 1.25mm)
Height (Max) 0.035" (0.90mm)
Win Source Part Number 025296-NFM3DCC470U1H3L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NFM3DCC470U1H3L CAD Model

Description

The Murata Electronics North America SMD (SMT) mountable capacitor is designed for general purpose applications.

  • Voltage Rating: 50V
  • Capacitance: 47pF
  • Tolerance: -20%, +50%
  • Height: 0.035" (0.90mm)
  • Current: up to 300mA
  • Insertion Loss: Not specified
  • DC Resistance (DCR) (Max): Not specified
  • Dimensions: 0.126" L x 0.049" W (3.20mm x 1.25mm)
  • Operating Temperature: -55°C to 125°C
  • Supply and demand status: balanced
