Same model may have multiple batches, images only for reference.

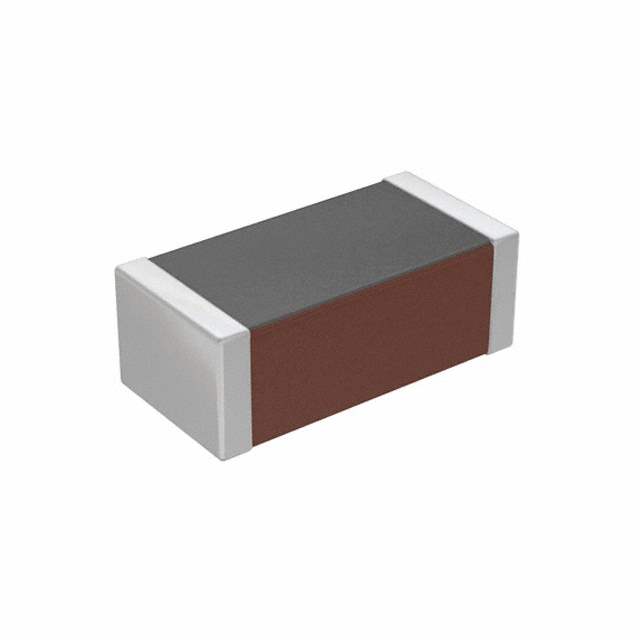

HF30ACB321611-T Real Image
Same model may have multiple batches, images only for reference.

HF30ACB321611-T

Part No HF30ACB321611-T
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 19 OHM 1206 1LN
Datasheet
HF30ACB321611-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 19 Ohm @ 100MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 200 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Win Source Part Number 016924-HF30ACB321611-T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HF30ACB321611-T CAD Model

Description

The HF30ACB321611-T is a signal line filter manufactured by TDK Corporation.

  • Maximum Current Rating: 500mA
  • DC Resistance (DCR) (Max): 200 mOhm
  • Mounting: SMD (SMT)
  • Height (Max): 0.051" (1.30mm)
  • Lines: Single line
  • Impedance: 19 Ohm @ 100MHz
  • Supply and Demand Status: Balanced
