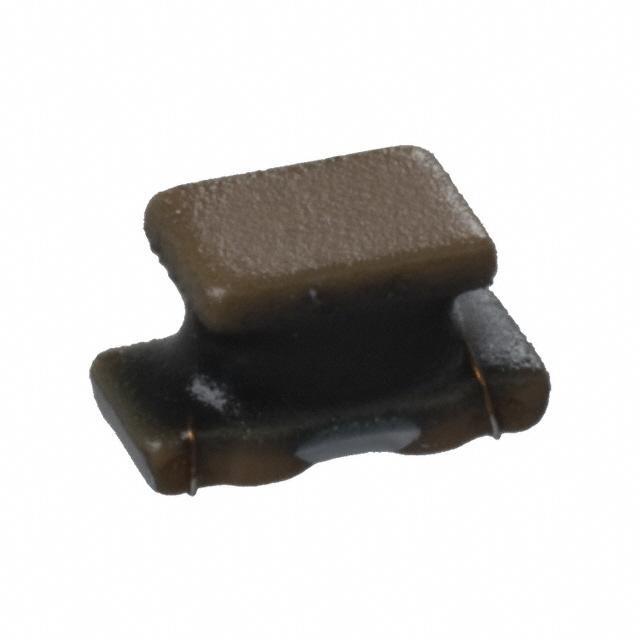

NFW31SP506X1E4L Murata Electronics North America NFW31SP506X1E4L Real Image NFW31SP506X1E4L label picture 2
Same model may have multiple batches, images only for reference.
NFW31SP506X1E4L Murata Electronics North America NFW31SP506X1E4L Real Image NFW31SP506X1E4L label picture 2
NFW31SP506X1E4L Murata Electronics North America NFW31SP506X1E4L Real Image NFW31SP506X1E4L label picture 2
Same model may have multiple batches, images only for reference.

NFW31SP506X1E4L

Part No NFW31SP506X1E4L
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description EMI Filter LC-Circuit 30dB 0.2A 25VDC Flat Style SMD T/R / FILTER LC(PI) 50MHZ SMD
Datasheet
NFW31SP506X1E4L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 1
Center / Cutoff Frequency 50MHz (Cutoff)
Attenuation Value 10dB @ 100MHz
Current 200mA
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications General Purpose
Voltage Rating 25V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.079" (2.00mm)
Win Source Part Number 025313-NFW31SP506X1E4L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name NFW31SP
Introduction Date March 09, 2005
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian NFW31SP506X1E4L CAD Model

Description

The Murata Electronics North America 025313-NFW31SP506X1E4L is a low-pass filter that is widely used in various electronic devices.

  • Supply and Demand: Sufficient
  • Application: General-Purpose Applications
  • Voltage Rating: 25V
  • Current: 200mA
