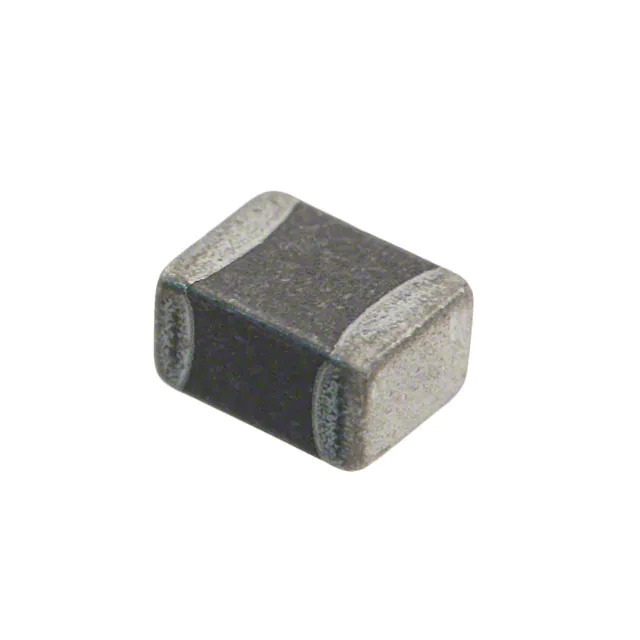

NFZ2MSM101SN10L Murata Electronics North America
Same model may have multiple batches, images only for reference.

NFZ2MSM101SN10L

Part No NFZ2MSM101SN10L
Manufacturer Murata Electronics North America
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 100 OHM 0806 1LN
Datasheet
NFZ2MSM101SN10L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Murata Electronics
Series EMIFIL®, NFZ2MSM
Package Tape & Reel
Product Status Active
Filter Type -
Number of Lines 1
Impedance @ Frequency 100 Ohms @ 100 MHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 18mOhm
Ratings -
Temperature Range - Operating -40°C ~ 85°C
Package / Case 0806 (2016 Metric)
Mounting Type Surface Mount
Height (Max) 0.039" (1.00mm)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Base Product Number NFZ2MSM
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369175-NFZ2MSM101SN10L
Ultra Librarian 3D Model Ultra Librarian NFZ2MSM101SN10L CAD Model

Description

The Murata Electronics NFZ2MSM101SN10L is a ferrite bead and chip filter with an impedance of 100 Ohms @ 100 MHz.

  • Series: EMIFIL®, NFZ2MSM
  • Package Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Mounting Type: Surface Mount
  • Package: 0806 (2016 Metric)
  • Height: 0.039" (1.00mm)
  • Current Rating: 4A
  • DC Resistance (DCR): 18mOhm max.
  • Operating Temperature: -40°C to 85°C
  • REACH: Unaffected
  • ECCN: EAR99
