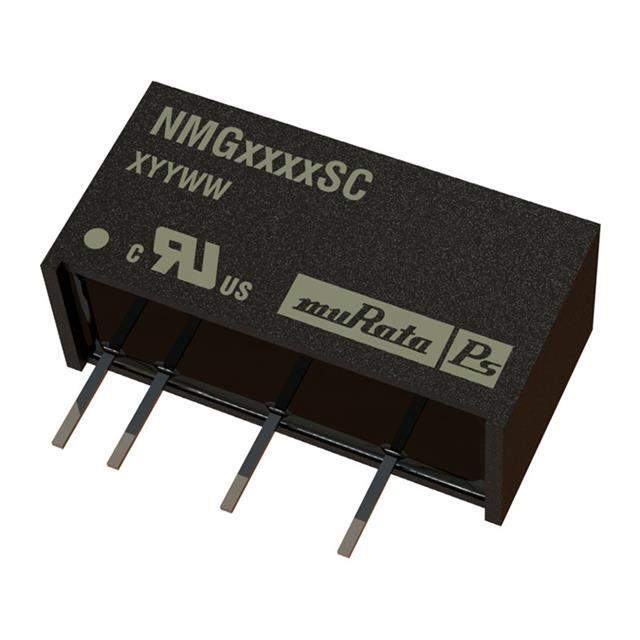

Same model may have multiple batches, images only for reference.

NMG0505SC

Name: NMG0505SC
Brand: Murata Electronics North America
SKU: 258544
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

Part No	NMG0505SC
Manufacturer	Murata Electronics North America
Catalog	Power Supplies Board Mount DCDC Converters
Description	Module DC-DC 5VIN 1-OUT 5V 0.4A 2W 4-Pin SIP Module Tube / CONV DC/DC 2W 5VIN 5VOUT SIP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Murata Electronics North America
Standard Package	25
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	NMG
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	400mA
Power (Watts) - Manufacture Series	2W
Voltage - Isolation	1kV (1000V)
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	7-SIP Module (4 Leads)
Size / Dimension	0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	83%
Power (Watts) - Max	2W
Catalog	NMG Series
Win Source Part Number	041935-NMG0505SC
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	NMG05
Introduction Date	June 18, 2008
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian NMG0505SC CAD Model

Alternative Products

Description

The Murata Electronics NMG0505SC is a high-quality and reliable DC-DC converter used in various electronic devices.

Series: NMG
Voltage Isolation: 1kV (1000V)
Current Output: 400mA
Voltage Output: 5V
Power: 2W
Efficiency: 83%
Temperature Range: -40°C to 85°C
Package: 7-SIP module (4 leads)
Size: 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Supply and Demand: Balance
