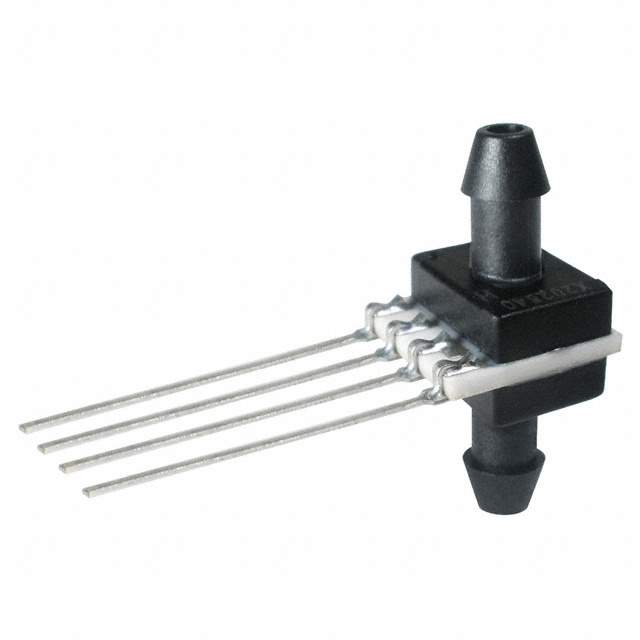

The SSCSAAT001PGAA5 is a pressure sensor from Honeywell's TruStability® Silicon Ceramic (SSC) series. These sensors offer a robust and reliable solution for a diverse range of pressure sensing needs. This particular model is an absolute pressure sensor, compensated, amplified, and operates within a specific pressure range.

Applications:

• Industrial Automation: Pressure monitoring in pneumatic systems, process control, and robotics.
• Medical Equipment: Air pressure monitoring in respirators, ventilators, and oxygen concentrators.
• HVAC Systems: Differential pressure measurement across filters, air duct pressure monitoring, and building automation.
• Test and Measurement: Pressure calibration equipment, pressure gauges, and data logging systems.
• Transportation: Vehicle engine management systems, brake pressure monitoring, and tire pressure monitoring systems (TPMS).

Features:

• Pressure Range: 0 to 1 PSI (0 to 6.89 kPa) absolute
• Compensated and Amplified: Provides accurate and stable output signal, simplifying integration.
• Absolute Pressure Measurement: Measures pressure relative to a perfect vacuum.
• Silicon Ceramic Construction: Offers excellent media compatibility and long-term stability.
• Compact Size: Allows for easy integration into space-constrained applications.
• Ratiometric Analog Output: Output voltage is proportional to the supply voltage.

Benefits:

• High Accuracy: The compensated and amplified output provides precise pressure readings.
• Easy Integration: The amplified output simplifies connection to microcontrollers and other electronic systems.
• Reliable Performance: The silicon ceramic construction ensures long-term stability and durability.
• Versatile: Suitable for a wide range of applications due to its robust design and performance.
• Cost-Effective: Provides a balance of performance and value.

Additional Details:

The SSCSAAT001PGAA5 is an absolute pressure sensor, meaning it measures pressure relative to a perfect vacuum. The sensor is internally temperature compensated and provides an amplified output, simplifying integration into electronic systems. The ratiometric output is proportional to the supply voltage, so a stable supply voltage is crucial for accurate measurements. The silicon ceramic construction offers excellent resistance to corrosive media. The small size and robust design make it a popular choice for various industrial, medical, and automotive applications. The sensor is designed to provide accurate and reliable pressure measurements in demanding environments.
