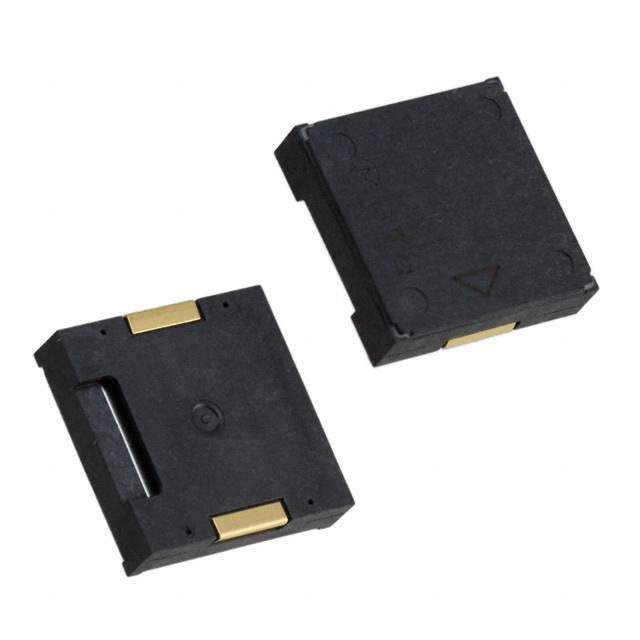

PKLCS1212E2400-R1 Real Image
Same model may have multiple batches, images only for reference.

PKLCS1212E2400-R1

Part No PKLCS1212E2400-R1
Manufacturer Murata Electronics North America
Catalog Alarms, Buzzers, and Sirens
Description EMIFIL (Capacitor type) Single Circuit Type for Signal Lines
Datasheet
PKLCS1212E2400-R1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer Murata Electronics North America
Series PK
Packaging Reel - TR
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage Rating DC 1.5V
Voltage Range 12.5V (Maximum)
Frequency 2.4kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 75dB @ 1.5V, 10cm
Port Location Side
Operating Temperature Range -20°C ~ 70°C
Mounting SMD
Termination Solder Pads
Size 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Maximum) 0.126" (3.20mm)
Win Source Part Number 1238605-PKLCS1212E2400-R1
Manufacturer Homepage www.murata.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PKLCS1212E2400-R1 CAD Model

Description

The PKLCS1212E2400-R1 piezo sounder by Murata Electronics North America is a high-quality component that is designed for use in audio products.

  • Frequency: 2.4kHz
  • Sound Pressure Level: 75dB @ 1.5V, 10cm
  • Series: PK
  • Package: Reel
  • Size: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Voltage Range: 12.5V (Maximum)
  • Operating Mode: Single Tone
  • HTSUS Compliant: Yes
  • Alternative Part Numbers: CMT-1203-SMT-TR
  • Popularity: high
  • Supply and Demand Status: limited
