Same model may have multiple batches, images only for reference.

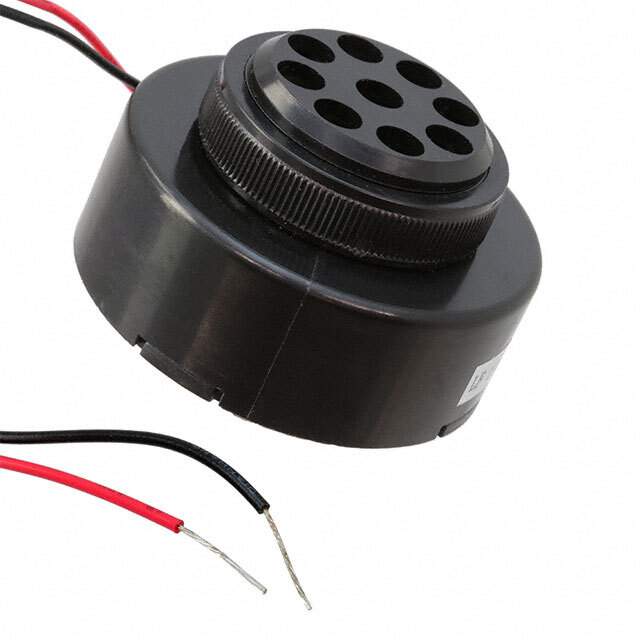

IP532806-1 Real Image
Same model may have multiple batches, images only for reference.

IP532806-1

Part No IP532806-1
Manufacturer DB Unlimited.
Catalog Alarms, Buzzers, and Sirens
Description BUZZER PIEZO 6V 53MM PNL MNT
Datasheet
IP532806-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products - Alarms, Buzzers, and Sirens
Mfr DB Unlimited.
Package Tray
Product Status Active
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage - Rated 6 V
Voltage Range 3 ~ 12V
Frequency 2.8kHz
Technology Piezo
Operating Mode Single Tone
Current - Supply 20mA
Port Location Top
Temperature Range - Operating -30°C ~ 70°C
Mounting Type Panel Mount
Termination Wire Leads
Size / Dimension 2.087" Dia (53.00mm)
Height - Seated (Max) 1.220" (31.00mm)
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8531.80.9041
California Prop 65 Warning Information
Win Source Part Number 849783-IP532806-1
Ultra Librarian 3D Model Ultra Librarian IP532806-1 CAD Model

Description

The IP532806-1 is a piezo buzzer with a rated voltage of 6V and a frequency of 2.8kHz.

  • Rated Voltage: 6V
  • Frequency: 2.8kHz
  • Voltage Range: 3V to 12V
  • Current Supply: 20mA
  • Mounting Type: Panel Mount
  • Termination: Wire Leads
  • Size: 2.087" Diameter, 1.220" Height
  • Manufacturer: DB Unlimited
  • Product Status: Active
  • Applications: Audio Alarm Systems, Buzzers, and Sirens
