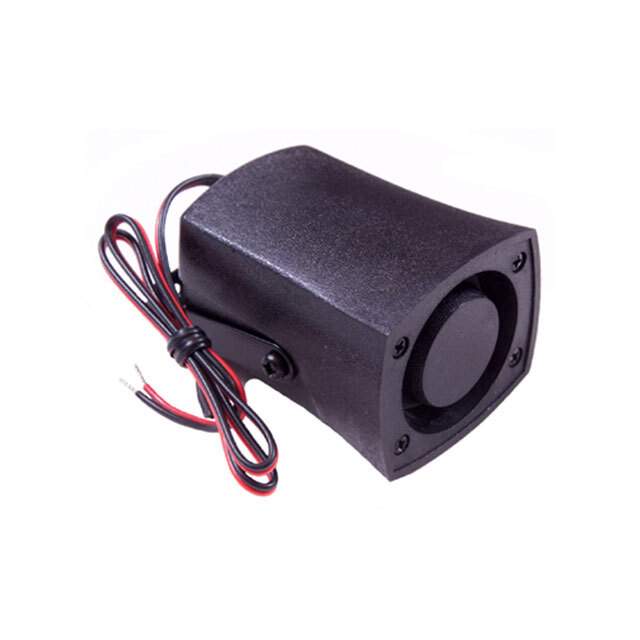

PS-522Q Real Image
Same model may have multiple batches, images only for reference.

PS-522Q

Part No PS-522Q
Manufacturer Mallory Sonalert Products Inc.
Catalog Audio Accessories
Description BUZZER PIEZO 12V 57.5X44.5 BRKT / Buzzers Indicator, Internally Driven Piezo 12 V 200mA 3kHz 105dB @ 12V, 100cm Bracket Mount Wire Leads
Datasheet
PS-522Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr Mallory Sonalert Products Inc.
Series PS
Package Bulk
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage - Rated 12 V
Voltage Range 5 ~ 15V
Frequency 3kHz
Technology Piezo
Operating Mode Warble, Slow
Sound Pressure Level (SPL) 105dB @ 12V, 100cm
Current - Supply 200mA
Port Location User Defined
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Bracket Mount
Termination Wire Leads
Dimension 2.263" L x 1.752" W (57.50mm x 44.50mm)
Height - Seated (Max) 1.594" (40.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
Other Names 458-1552,PS-522Q-ND
Standard Package 1
Win Source Part Number 1128094-PS-522Q
Ultra Librarian 3D Model Ultra Librarian PS-522Q CAD Model

Description

The Mallory Sonalert Products Inc. PS-522Q is a piezo technology audio product, specifically an alarm, buzzer, and siren.

  • Termination: wire leads
  • Input Type: DC
  • Rated Voltage: 12 V
  • Voltage Range: 5 ~ 15V
  • Frequency: 3kHz
  • Sound Pressure Level (SPL): 105dB @ 12V, 100cm
  • Operating Mode: warble, slow
  • Temperature Range: -20 to 70 °C
  • Mounting: bracket mountable
  • Dimensions: 2.263" L x 1.752" W (57.50mm x 44.50mm)
  • REACH: unaffected
  • ECCN: EAR99
