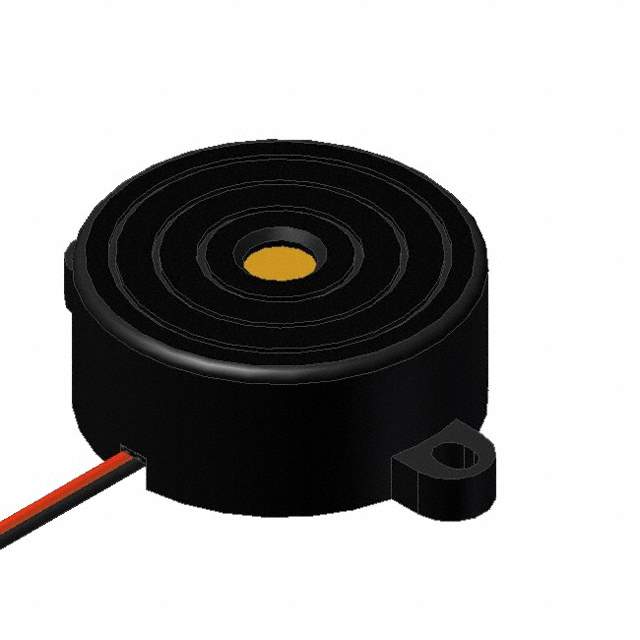

AI-3238-TF-LW140-R

Part No AI-3238-TF-LW140-R
Manufacturer PUI Audio, Inc.
Catalog Audio Accessories
Description BUZZER PIEZO 12V 32MM FLANGE  /  Buzzers Indicator, Internally Driven Piezo 12 V 10mA 3.8kHz 106dB @ 12V, 10cm Panel Mount, Flange Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr PUI Audio, Inc.
Series AI
Package Bulk
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage - Rated 12 V
Voltage Range 3 ~ 20V
Frequency 3.8kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 106dB @ 12V, 10cm
Current - Supply 10mA
Port Location Top
Temperature Range - Operating -30°C ~ 85°C
Mounting Type Panel Mount, Flange
Termination Wire Leads
Dimension 1.260" Dia (32.00mm)
Height - Seated (Max) 0.551" (14.00mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8531.80.9041
Other Names AI3238TFLW140R,AI-3238-TF-LW140-R-ND,668-1277
Standard Package 160
Win Source Part Number 968799-AI-3238-TF-LW140-R
Ultra Librarian 3D Model Ultra Librarian AI-3238-TF-LW140-R CAD Model

Description

The PUI Audio, Inc. 968799-AI-3238-TF-LW140-R is a piezo technology-based, single-tone audio product with a frequency of 3.8 kHz and a sound pressure level (SPL) of 106 dB at 12 V and 10 cm. It is manufactured by PUI Audio, Inc.

  • Technology: Piezo
  • Tone: Single
  • Frequency: 3.8 kHz
  • Sound Pressure Level (SPL): 106 dB @ 12 V and 10 cm
  • Voltage Rating: 12 V
  • Current Supply: 10 mA
  • Voltage Range: 3 ~ 20 V
  • Port Location: Top
  • Mounting Type: Panel Mount, Flange
  • Diameter: 1.260 inches
  • Temperature Range: -30°C to 85°C
  • ECCN: EAR99
  • Suitable for: Alarms, buzzers, and sirens
