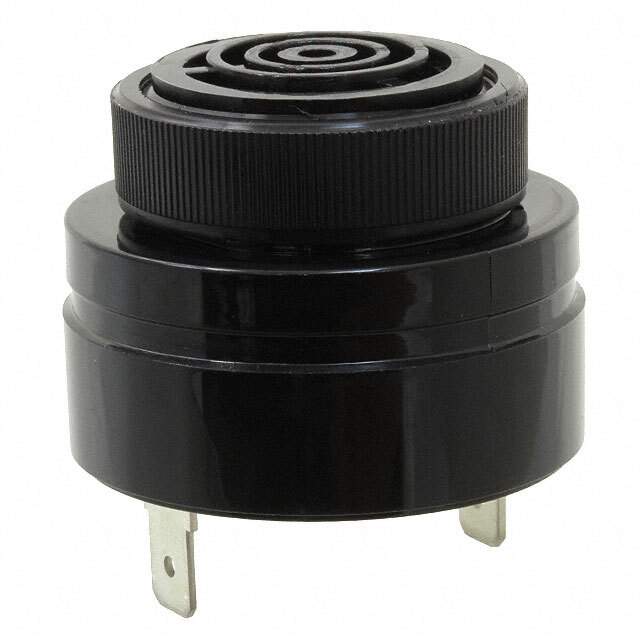

SC616NJ-BTR

Part No SC616NJ-BTR
Manufacturer Mallory Sonalert Products Inc.
Catalog Audio Accessories
Description BUZZER PIEZO 42.85MM PNL MNT / Buzzers Indicator, Internally Driven Piezo 6 ~ 22mA 2.9kHz 80dB @ 6V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Datasheet
Sample
ECAD Module ECAD
rohs

Shipping Information

Shipped from HK warehouse
Expected Shipping Date Ask for an estimation

Products specifications

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr Mallory Sonalert Products Inc.
Series SC
Package Bulk
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage Range 6 ~ 16V
Frequency 2.9kHz
Technology Piezo
Operating Mode Pulse, Slow
Duration 0.5 ~ 3.5 PPS
Sound Pressure Level (SPL) 80dB @ 6V, 61cm
Current - Supply 6 ~ 22mA
Port Location Top
Temperature Range - Operating -30°C ~ 65°C
Approval Agency cUL, UL
Mounting Type Panel Mount
Termination Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Dimension 1.687" Dia (42.85mm)
Height - Seated (Max) 1.399" (35.54mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
Other Names SC616NJ-BTR-ND,458-1301
Standard Package 1
Win Source Part Number 1066269-SC616NJ-BTR
Fake Threat In the Open Market 81 pct.
Alternative Parts
(Cross-Reference)

Description

The SC616NJ-BTR is a piezo buzzer from Mallory Sonalert Products Inc. It is a part of the SC series and has a screw terminal and quick connect tab of 0.250" (6.35mm). This buzzer has a frequency of 2.9kHz and an input type of DC. It has a voltage range of 6 ~ 16V and a sound pressure level of 80dB @ 6V, 61cm. The SC616NJ-BTR has a duration of 0.5 ~ 3.5 PPS and an operating mode of pulse, slow. It has a current supply of 6 ~ 22mA and a temperature range of -30°C ~ 65°C. This buzzer is internally driven and has a driver circuitry of indicator. It is a panel mount type buzzer that comes in a bulk package. The SC616NJ-BTR is cUL and UL approved and has an ECCN of EAR99. It is an excellent product that offers superior performance and reliability.
