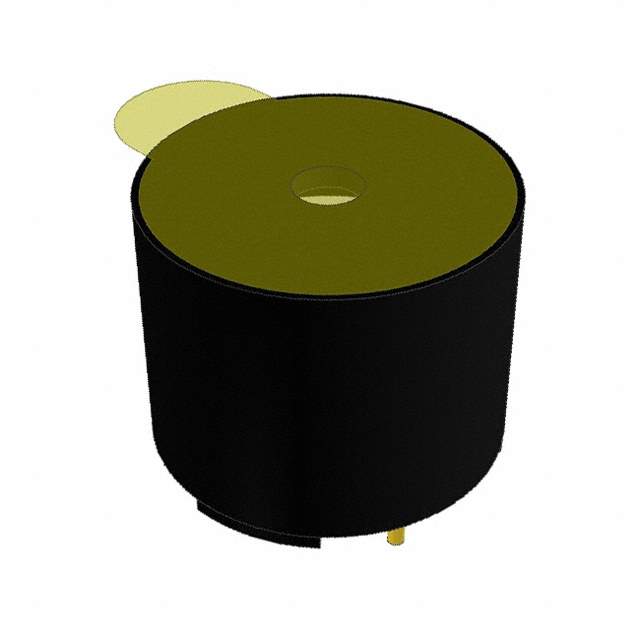

AT-1220-TWT-5V-R

Part No AT-1220-TWT-5V-R
Manufacturer PUI Audio, Inc.
Catalog Audio Accessories
Description BUZZER MAGNETIC 5V 12MM TH / Buzzers Transducer, Externally Driven Electromechanical/Magnetic 5 V 45mA 2.048kHz 85dB @ 5V, 10cm Through Hole PC Pins
Datasheet
Sample
ECAD Module ECAD
rohs

Shipping Information

Shipped from HK warehouse
Expected Shipping Date
Ship today if order in (HKT)
Supplier Lead-Time Call for availability
Estimate shipping fee
Enter your destination to get a shipping estimate
Estimate Shipping Fee
Pricing & Ordering $1.6865 Historical reference price : is the price that a customer announces that it is willing to pay for this component in the previous period, only for reference.
Quantity
Unit Price
Ext. Price
23+
$2.1870
$50.301
56+
$1.7950
$100.520
87+
$1.7390
$151.293
119+
$1.6830
$200.277
154+
$1.6270
$250.558
206+
$1.4580
$300.348
* The above prices does not include taxes and freight rates, which will be calculated on the order pages.
Availability: 4,047 pieces
In stock: 0 pcs Availability: 4047 pcs
MOQ: 23 pcs
Order Increment : 1 pcs
*Need More Quantity? *Request a Bulk Quantity Quotation?
Estimate shipping
Enter your destination to get a shipping estimate

*

Products specifications

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr PUI Audio, Inc.
Series AT
Package Bulk
Driver Circuitry Transducer, Externally Driven
Input Type peak-peak Signal
Voltage - Rated 5 V
Voltage Range 3 ~ 8V
Frequency 2.048kHz
Technology Electromechanical/Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 85dB @ 5V, 10cm
Current - Supply 45mA
Port Location Top
Temperature Range - Operating -20°C ~ 60°C
Ratings Washable
Mounting Type Through Hole
Termination PC Pins
Dimension 0.472" Dia (12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8531.80.9041
Other Names 668-1242,AT-1220-TWT-5V-R-ND,AT1220TWT5VR
Standard Package 100
Win Source Part Number 1046218-AT-1220-TWT-5V-R
Fake Threat In the Open Market 64 pct.
Alternative Parts
(Cross-Reference)

Description

The PUI Audio AT series alarm, buzzer, and siren component is an electromechanical/magnetic technology product with a rated voltage of 5V and a rated frequency of 2.048kHz. It has a sound pressure level of 85dB @ 5V, 10cm and a washable rating. The AT series product has a peak-peak signal input type and a single tone operating mode. The component is mounted through hole and has a temperature range of -20°C to 60°C. It has a dimension of 0.472" Dia (12.00mm) and a port location on top. The AT series is packaged in bulk with a standard package of 100.
