Same model may have multiple batches, images only for reference.

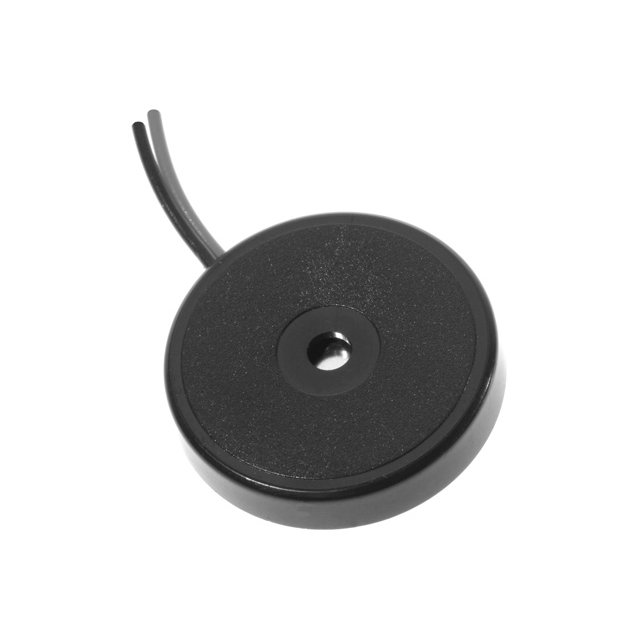

TP235012-1 Real Image
Same model may have multiple batches, images only for reference.

TP235012-1

Part No TP235012-1
Manufacturer DB Unlimited.
Catalog Audio Accessories
Description BUZZER PIEZO 12V 23MM CUSTOM  /  Buzzers Transducer, Externally Driven Piezo 12 V 7mA 5kHz Custom Wire Leads
Datasheet
TP235012-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr DB Unlimited
Package Tray
Driver Circuitry Transducer, Externally Driven
Input Type peak-peak Signal
Voltage - Rated 12 V
Voltage Range 1 ~ 40V
Frequency 5kHz
Technology Piezo
Current - Supply 7mA
Port Location Top
Temperature Range - Operating -20°C ~ 60°C
Mounting Type Custom
Termination Wire Leads
Dimension 0.906" Dia (23.00mm)
Height - Seated (Max) 0.169" (4.30mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
Other Names 2104-TP235012-1
Standard Package 200
Win Source Part Number 1137414-TP235012-1
Ultra Librarian 3D Model Ultra Librarian TP235012-1 CAD Model

Description

The TP235012-1 electronic component is an audio product that falls under the category of alarms, buzzers, and sirens. The TP235012-1 is manufactured by DB Unlimited.

  • Voltage Rating: 12 V
  • Frequency: 5kHz
  • Supply Current: 7mA
  • Operating Temperature Range: -20°C to 60°C
