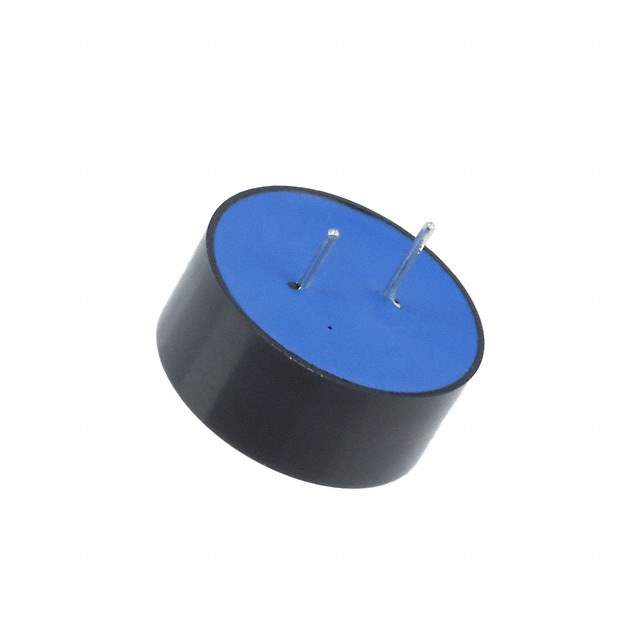

SD160709 Real Image
Same model may have multiple batches, images only for reference.

SD160709

Part No SD160709
Manufacturer TDK Corporation
Catalog Alarms, Buzzers, and Sirens
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr TDK Corporation
Series SD
Package Tray
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage - Rated 5 V
Voltage Range 3 ~ 9V
Frequency 4.096kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 80dB @ 5V, 10cm
Current - Supply 70mA
Port Location Top
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Through Hole
Termination PC Pins
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.276" (7.00mm)
Other Names 445-5245
Standard Package 480
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8531.80.9041
Win Source Part Number 1314322-SD160709
Ultra Librarian 3D Model Ultra Librarian SD160709 CAD Model

Description

The TDK Corporation SD160709 is a high-quality magnetic audio product that is designed for use in alarms, buzzers, and sirens. TDK Corporation manufactures this.

  • Termination: PC pin terminated
  • Packaging: Tray
  • Height (seated): 0.276" (7.00mm)
  • Standard Package: 480
  • Voltage Rating: 5 V
  • Frequency: 4.096kHz
  • Input Type: Zero-peak signal
  • Current Supply: 70mA
  • Operating Mode: Single tone
  • Voltage Range: 3 ~ 9V
