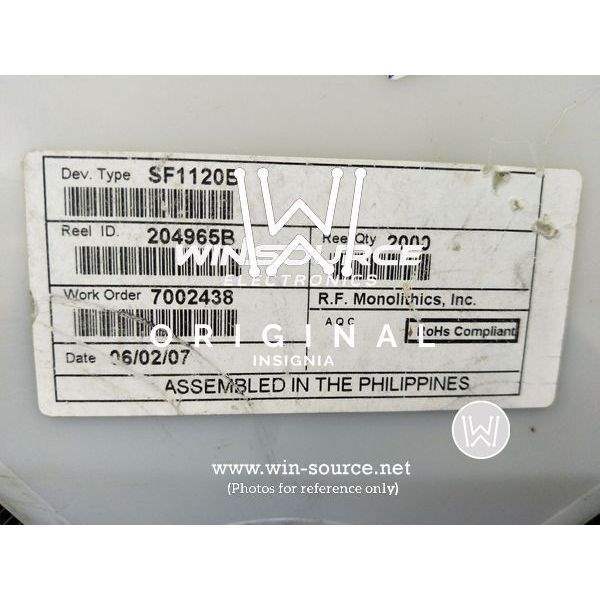

SF1120B RF Monolithics, Inc SF1120B label picture
SF1120B RF Monolithics, Inc SF1120B label picture
Same model may have multiple batches, images only for reference.

SF1120B

Part No SF1120B
Manufacturer Murata Electronics North America
Catalog SAW Filters
Description FILTER SAW 298.74MHZ 10SMD / 298.74MHz Frequency GPS RF SAW Filter (Surface Acoustic Wave) 12dB 2.2MHz Bandwidth 10-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - SAW Filters
Mfr Murata Electronics North America
Package Tape & Reel
Product Status Obsolete
Frequency - Center 298.74MHz
Bandwidth 2.2MHz
Insertion Loss 12dB
Applications GPS
Mounting Type Surface Mount
Package / Case 10-SMD, No Lead
Height (Max) 0.079" (2.00mm)
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Base Product Number SF11
Standard Package 500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 665112-SF1120B
Ultra Librarian 3D Model Ultra Librarian SF1120B CAD Model

Description

The SF1120B is a SAW filter from Murata Electronics.

  • Application: GPS
  • Center Frequency: 298.74MHz
  • Bandwidth: 2.2MHz
  • Insertion Loss: 12dB
  • Height: 0.079" (2.00mm)
  • Package: surface mount
  • Size: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Package Type: tape & reel
  • Standard Package Quantity: 500 pcs
  • Features: high performance and reliability
