Same model may have multiple batches, images only for reference.

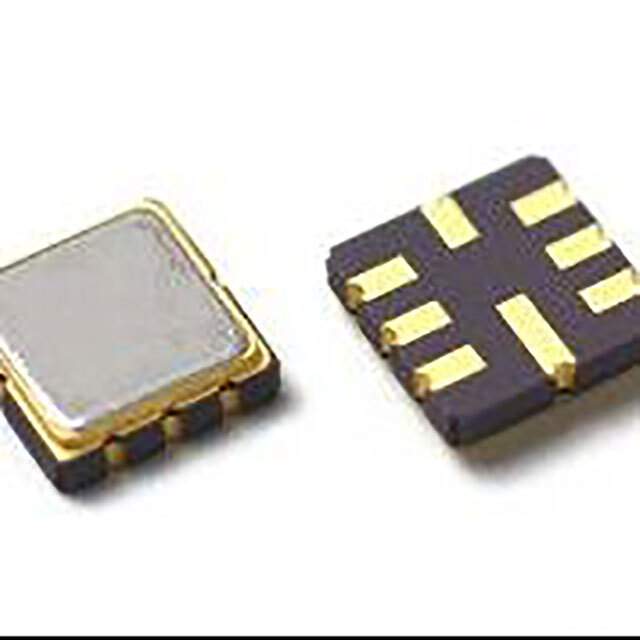

SF2289C Real Image
Same model may have multiple batches, images only for reference.

SF2289C

Part No SF2289C
Manufacturer Murata Electronics North America
Catalog SAW Filters
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>SAW Filters
Mfr Murata Electronics
Package Tape & Reel (TR)
Product Status Obsolete
Frequency - Center 155MHz
Insertion Loss 6.5dB
Applications General Purpose
Mounting SMD (SMT)
Package / Case 8-SMD, No Lead
Height (Max) 0.067" (1.70mm)
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Base Product Number SF22
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 1275894-SF2289C
Ultra Librarian 3D Model Ultra Librarian SF2289C CAD Model

Description

The Murata Electronics SF2289C is a SAW filter that is ideal for general-purpose use.

  • Frequency Center: 155MHz
  • Insertion Loss: 6.5dB
  • Height (max): 0.067" (1.70mm)
  • Package/Case: 8-SMD, no lead
  • Dimensions: 0.197" L x 0.197" W (5.00mm x 5.00mm)
  • Mounting: SMD (SMT) technology
  • Series: SF22
  • Status: Obsolete
  • ECCN: EAR99
  • HTSUS: 8541.60.0080
