Same model may have multiple batches, images only for reference.

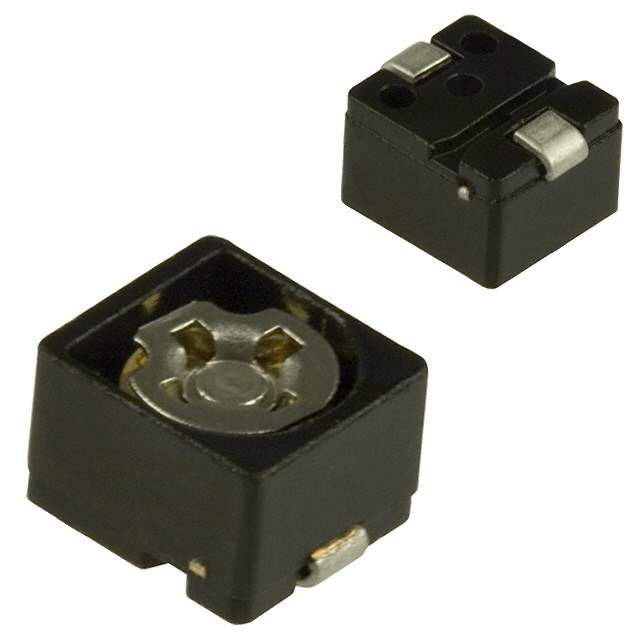

TZB4Z250AA10R00 Real Image
Same model may have multiple batches, images only for reference.

TZB4Z250AA10R00

Part No TZB4Z250AA10R00
Manufacturer Murata Electronics North America
Catalog Trimmers, Variable Capacitors
Description Can be reflow and flow
Datasheet
TZB4Z250AA10R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Murata Electronics North America
Series TZB4
Packaging Reel - TR
Capacitance Range 4 ~ 25pF
Adjustment Type Top Adjustment
Voltage Rating DC 50V
Size Rectangular - 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Maximum) 0.126" (3.20mm)
Mounting SMD
Features General
Win Source Part Number 1275174-TZB4Z250AA10R00
Manufacturer Homepage www.murata.com
Popularity Medium
Supply and Demand Status Limited
Family Name TZB4
Introduction Date August 26, 2008
ECCN EAR99
Estimated EOL Date 2019
Ultra Librarian 3D Model Ultra Librarian TZB4Z250AA10R00 CAD Model

Description

The Murata Electronics North America TZB4Z250AA10R00 is a rectangular capacitor that is designed for use in a variety of applications.

  • Manufacturer: Murata Electronics North America
  • Capacitance Range: 4 to 25pF
  • Voltage Rating: 50V
  • Mounting Type: SMD
  • Adjustment: top adjustment
  • Description: high-quality component that is reliable and durable
