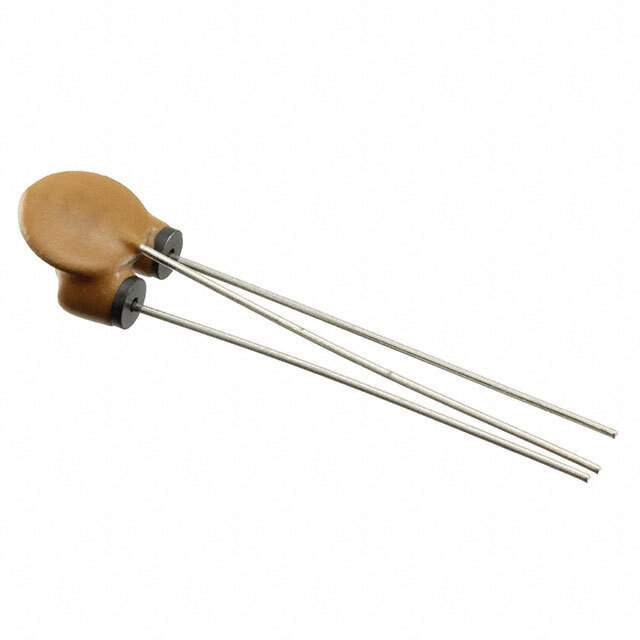

VFS9VD31B223Q93J Real Image
Same model may have multiple batches, images only for reference.

VFS9VD31B223Q93J

Part No VFS9VD31B223Q93J
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) 0.022UF TH / This reference specification applies to Disc-Type EMIFIL® (Three-terminal Varistor-Capacitor)
Datasheet
VFS9VD31B223Q93J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Electronics
Packaging Reel
Part Status Last Time Buy
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Current 7A
Values C = 0.022μF
ESD Protection No
Temperature Range - Operating -40°C ~ 100°C
Applications Data Lines for Mobile Devices
Voltage - Rated 12V
Mounting Style Through Hole
Manufacturer Package 3-SIP
Dimension 0.472" Dia x 0.295" L (12.00mm x 7.50mm)
Height 0.413" (10.50mm)
Manufacturer Pack Quantity 800
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803433-VFS9VD31B223Q93J
Ultra Librarian 3D Model Ultra Librarian VFS9VD31B223Q93J CAD Model

Description

The Murata Electronics VFS9VD31B223Q93J is a low pass filter.

  • Voltage Rating: 12V
  • Current: 7A
  • Technology: LC (T-Type)
  • Filter Order: 3rd
  • Package: 3-SIP
  • Dimensions: 0.472" Dia x 0.295" L (12.00mm x 7.50mm)
  • Mounting: Through hole
  • Height: 0.413" (10.50mm)
  • Values of C: 0.022μF
  • Temperature Range: -40°C ~ 100°C
  • Manufacturer Pack Quantity: 800
  • MSL Level: 1 (Unlimited)
