Same model may have multiple batches, images only for reference.

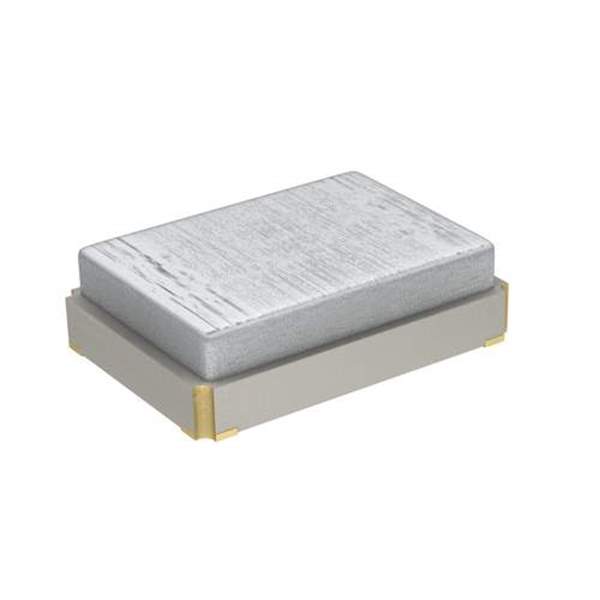

XRCGB26M000F1H89R0 Real Image
Same model may have multiple batches, images only for reference.

XRCGB26M000F1H89R0

Part No XRCGB26M000F1H89R0
Manufacturer Murata Electronics North America
Catalog Oscillators
Description 26.0MHZ CRYSTAL UNIT +/-10PPM IN / 26 MHz ±10ppm Crystal 5pF 60 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Murata Electronics
Series XRCGB
Package Tape & Reel
Product Status Not For New Designs
Type MHz Crystal
Frequency 26 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 5pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -30°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Other Names 490-XRCGB26M000F1H89R0TR,490-XRCGB26M000F1H89R0CT,490-XRCGB26M000F1H89R0DKR
Standard Package 3,000
Win Source Part Number 994940-XRCGB26M000F1H89R0
Ultra Librarian 3D Model Ultra Librarian XRCGB26M000F1H89R0 CAD Model

Description

The XRCGB26M000F1H89R0 is a MHz crystal oscillator that is mounted using SMD (SMT) technology.

  • Product: XRCGB26M000F1H89R0
  • Mounting: SMD (SMT)
  • Frequency: 26 MHz
  • ESR: 60 Ohms
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 5pF
  • Operating Mode: Fundamental
  • Package/Case: 4-SMD, No Lead
  • Temperature Range: -30°C to 85°C
  • Status: Not for New Designs
  • Series: XRCGB
  • Popularity: Low
  • Pct: 56 pct
