Same model may have multiple batches, images only for reference.

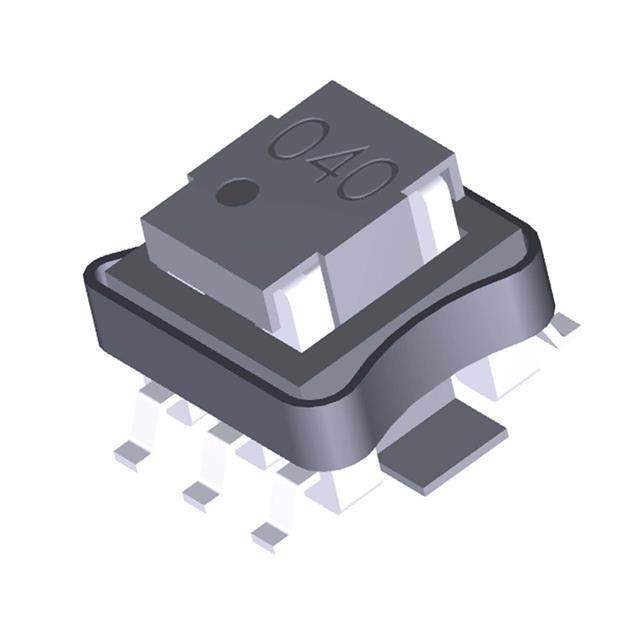

53100C Real Image
Same model may have multiple batches, images only for reference.

53100C

Part No 53100C
Manufacturer Murata Power Solutions Inc.
Catalog Current Sense Transformers
Description CURR SENSE XFMR 1:100 10A SMD  /  1:100 Current Sense Transformer 50kHz ~ 500kHz 7mOhm Primary, 5.6Ohm Secondary 2 mH Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Mfr Murata Power Solutions Inc.
Series 5300
Package Tape & Reel
Frequency Range 50kHz ~ 500kHz
Type Invasive
Inductance 2 mH
DC Resistance (DCR) 7mOhm Primary, 5.6Ohm Secondary
Mounting SMD (SMT)
Dimension 0.283" L x 0.327" W (7.20mm x 8.30mm)
Height - Seated (Max) 0.213" (5.40mm)
Termination Style Gull Wing
Base Product Number 53
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 811-1193-2,811-1193-1,811-1193-6
Standard Package 1,000
Win Source Part Number 1005885-53100C
Ultra Librarian 3D Model Ultra Librarian 53100C CAD Model

Description

The Murata Power Solutions current sense transformer is a 5300 series transformer that has an inductance of 2 mH and a height of 0.213" (5.40mm).

  • Series: 5300
  • Inductance: 2 mH
  • Height: 0.213" (5.40mm)
  • Mounting: SMD (SMT)
  • Dimension: 0.283" L x 0.327" W (7.20mm x 8.30mm)
  • DC Resistance: 7mOhm Primary, 5.6Ohm Secondary
  • Frequency Range: 50kHz ~ 500kHz
  • ECCN: EAR99
  • REACH: Unaffected
