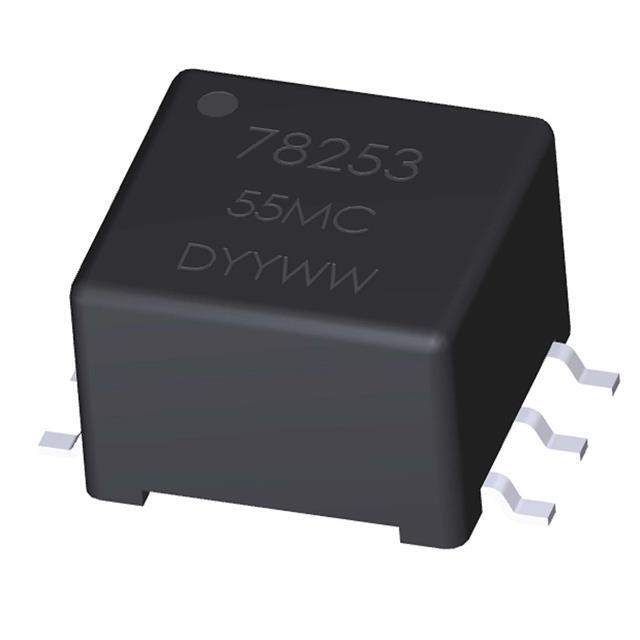

78253/55MC-R

Part No 78253/55MC-R
Manufacturer Murata Power Solutions Inc.
Catalog Specialty Transformers
Description MAX 253 TX 5V INPUT 5V OUT SMD /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Specialty Transformers
Mfr Murata Power Solutions Inc.
Series 78253
Package Tape & Reel
Product Status Not For New Designs
Inductance 830 µH
For Use With/Related Products MAX253
Mounting SMD (SMT)
Dimension 0.354" L x 0.375" W (9.00mm x 9.52mm)
Height - Seated (Max) 0.260" (6.60mm)
Weight 0.035 oz (1 g)
Base Product Number 78253
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 811-2646-1,7825355MCR,811-2646-6,811-2646-2
Standard Package 500
Win Source Part Number 1016432-78253/55MC-R
Ultra Librarian 3D Model Ultra Librarian 78253/55MC-R CAD Model

Description

The 78253 series transformer from Murata Power Solutions Inc. is a specialty transformer designed for use with the MAX253.

  • For Use With/Related Products: MAX253
  • Inductance: 830 µH
  • Height-Seated (max): 0.260" (6.60mm)
  • Package: Tape & Reel
  • Standard Package: 500
  • Mounting Type: SMD (SMT)
  • Weight: 0.035 oz (1 g)
  • Dimension: 0.354" L x 0.375" W (9.00mm x 9.52mm)
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8504.31.2000
  • Other Names: 811-2646-1, 7825355MCR, 811-2646-6, 811-2646-2
  • Base Product Number: 78253
  • Lifecycle Status: Not For New Designs
