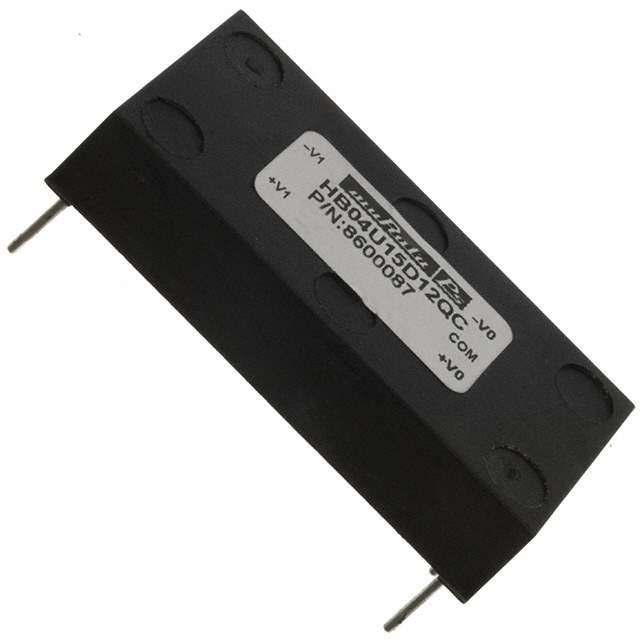

HB04U15D12QC Real Image
Same model may have multiple batches, images only for reference.

HB04U15D12QC

Part No HB04U15D12QC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC +/-12V +/-167MA UNREG / Module DC-DC 15VIN 2-OUT 12V/-12V 0.167A/-0.167A 4W 5-Pin
Datasheet
HB04U15D12QC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series HB04UC
Packaging Tube
Part Status Obsolete(EOL)
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 13.5V
Voltage Input MAX 16.5V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Maximum) 167mA, 167mA
Power (Watts) 4W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Operating Temperature Range -40°C ~ 85°C
Efficiency 88%
Mounting Style Through Hole
Package 5-DIP Module
Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Win Source Part Number 775600-HB04U15D12QC
Popularity Medium
Supply and Demand Status Limited
Family Name HB04UC
Introduction Date March 23, 2006
Country of Origin China, United States of America
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian HB04U15D12QC CAD Model

Description

The Murata Power Solutions Inc. HB04U15D12QC is an isolated module electronic component that belongs to the HB04UC series.

  • Power: 4W
  • Voltage Isolation: 3kV (3000V)
  • Package: 5-DIP Module
  • Mounting: Through Hole
  • Outputs: 2
  • Voltage Outputs: 12V, -12V
  • Application: ITE (Commercial)
  • Efficiency: 88%
  • Status: Obsolete (EOL)
  • Cross-Reference: Other electronic components
  • Supply/Demand Status: Limited
