Same model may have multiple batches, images only for reference.

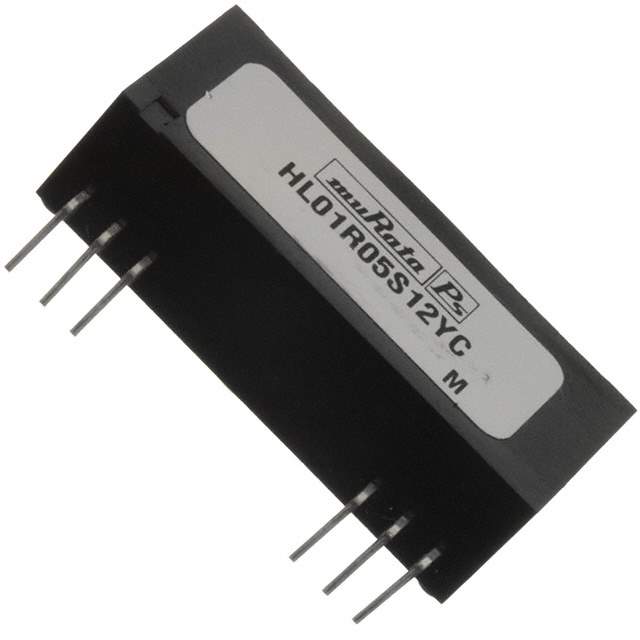

HL01R05S12YC

Name: HL01R05S12YC
Brand: Murata Power Solutions Inc.
SKU: 1214497
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	HL01R05S12YC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 1W / Isolated Module DC DC Converter 1 Output 12V 83mA 4.75V - 5.25V Input
Datasheet	HL01R05S12YC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	HL01RYC (1W)
Package	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.75V
Voltage - Input (Max)	5.25V
Voltage - Output 1	12V
Current - Output (Max)	83mA
Power (Watts)	1 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	52%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 12 Leads
Dimension	1.29" L x 0.53" W x 0.38" H (32.8mm x 13.5mm x 9.7mm)
Base Product Number	HL01R05
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	811-1748-5
Standard Package	15
Win Source Part Number	1214497-HL01R05S12YC
Ultra Librarian 3D Model	Ultra Librarian HL01R05S12YC CAD Model

Alternative Products

Description

The HL01R05S12YC is a 1W isolated DC-DC converter module manufactured by Murata Power Solutions Inc.

Application: ITE (Commercial)
Standard Package: 15
Voltage Isolation: 500V
Current Output: 83mA
Input Voltage Range: 4.75V to 5.25V
Output Voltage: 12V
Temperature Range: -40°C to 85°C
Mounting Type: Through Hole
Dimension: 1.29" L x 0.53" W x 0.38" H (32.8mm x 13.5mm x 9.7mm)
