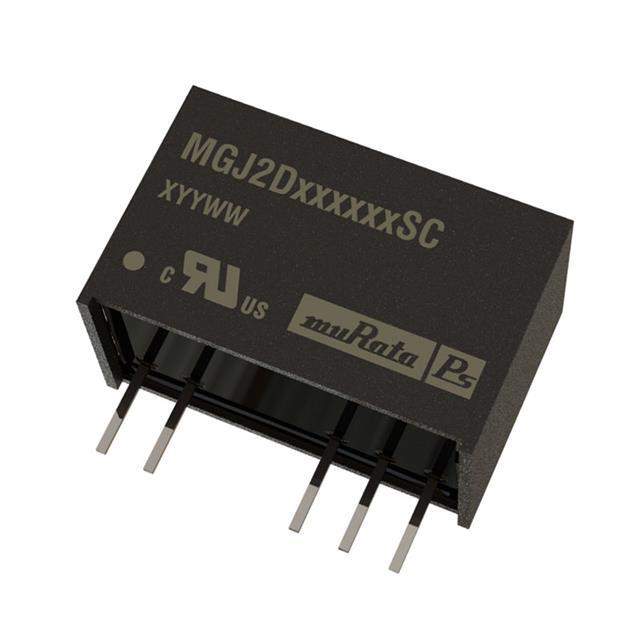

MGJ2D121509SC

Name: MGJ2D121509SC
Brand: Murata Power Solutions Inc.
SKU: 639227
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MGJ2D121509SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	5.2kVDC Isolated 2W Gate Drive DC/DC Converters
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Murata Power Solutions Inc.
Series	MGJ2
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Input Voltage MIN	10.8V
Voltage Input MAX	13.2V
Voltage - Output 1	15V
Voltage - Output 2	-8.7V
Current - Output (Maximum)	80mA, 40mA
Power (Watts)	2W
Voltage - Isolation	5.2kV (5200V)
Applications	ITE (Commercial), Medical
Features	SCP
Operating Temperature Range	-40°C ~ 100°C
Efficiency	80%
Mounting Style	Through Hole
Package	7-SIP Module, 5 Leads
Size	0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm)
Win Source Part Number	1221915-MGJ2D121509SC
Manufacturer Homepage	www.murata-ps.com
Popularity	Medium
Supply and Demand Status	Limited
Family Name	MGJ2D121509SC
Introduction Date	April 17, 2014
Country of Origin	China
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian MGJ2D121509SC CAD Model

Alternative Products

Description

The MGJ2D121509SC is an isolated module manufactured by Murata Power Solutions Inc.

Power: 2W
Voltage Isolation: 5.2kV
Outputs: 15V and -8.7V
Package: 7-SIP module with 5 leads
Operating Temperature: -40°C to 100°C
Features: SCP
Efficiency: 80%
Applications: ITE (Commercial) and Medical
