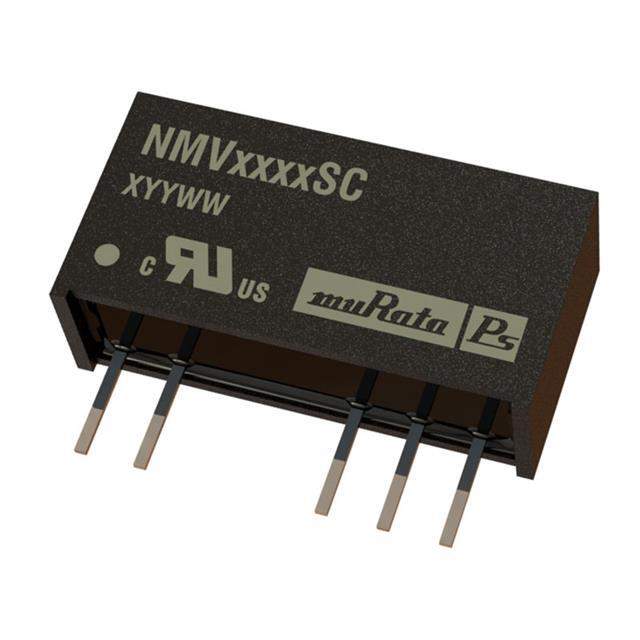

NMV2412SC Real Image
Same model may have multiple batches, images only for reference.

NMV2412SC

Part No NMV2412SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 21.6V - 26.4V Input
Datasheet
NMV2412SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA, 42mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating 0°C ~ 70°C
Efficiency 80%
Mounting Through Hole
Case / Package 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Base Product Number NMV24
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-1611-5
Standard Package 25
Win Source Part Number 1335271-NMV2412SC
Ultra Librarian 3D Model Ultra Librarian NMV2412SC CAD Model

Description

The Murata Power Solutions Inc. NMV2412SC is an obsolete 1W isolated DC/DC converter module with a voltage isolation of 3 kV.

  • Outputs: Two
  • Maximum Output Current: 42 mA each
  • Voltage Output: 12V and -12V
  • Mounting Type: Through-hole
  • Package Size: 7-SIP module, 5 leads
  • Efficiency: 80%
  • Operating Temperature: 0°C to 70°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 40.9580
