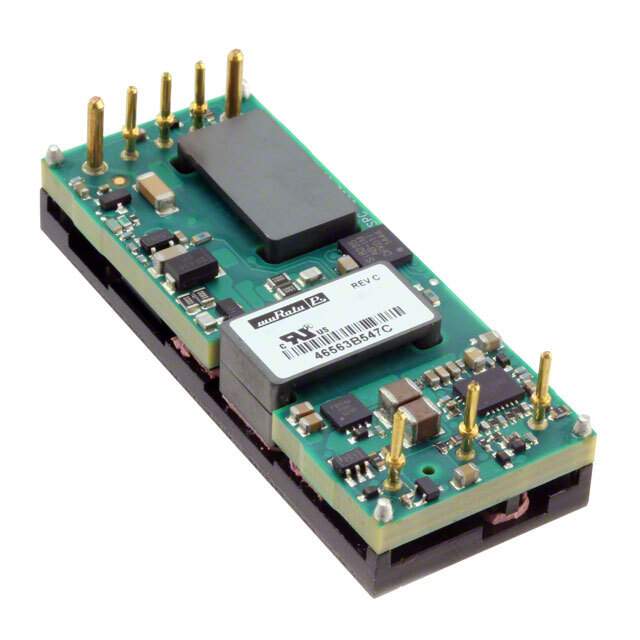

UWE-5/15-Q12PB-C Real Image
Same model may have multiple batches, images only for reference.

UWE-5/15-Q12PB-C

Part No UWE-5/15-Q12PB-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 75W / Isolated Module DC DC Converter 1 Output 5V 15A 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series UWE
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 15A
Power (Watts) 75 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 91%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Size / Dimension 2.30" L x 0.90" W x 0.34" H (58.4mm x 22.9mm x 8.6mm)
Control Features Enable, Active High
Base Product Number UWE-5
Standard Package 42
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1348767-UWE-5/15-Q12PB-C
Ultra Librarian 3D Model Ultra Librarian UWE-5/15-Q12PB-C CAD Model

Description

The Murata Power Solutions Inc. UWE-5/15-Q12PB-C is a 75W isolated module DC DC converter that comes in a 8-DIP module, 1/8 Brick package.

  • Voltage Isolation: 1.5kV
  • Efficiency: 91%
  • Operating Temperature: -40°C to 85°C
  • Application: ITE (Commercial)
  • Features: Remote On/Off, OCP, OTP, OVP, SCP, and UVLO
  • Voltage Output: 5V
  • Current Output: 15A
  • Dimension: 2.30" L x 0.90" W x 0.34" H (58.4mm x 22.9mm x 8.6mm)
  • Voltage Input: 9V to 36V
