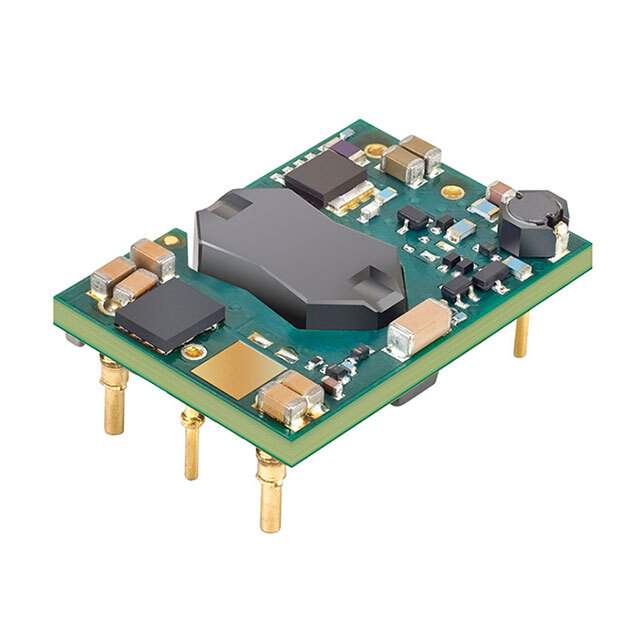

UWS-12/4.5-Q48N-C Real Image
Same model may have multiple batches, images only for reference.

UWS-12/4.5-Q48N-C

Part No UWS-12/4.5-Q48N-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 54W / Isolated Module DC DC Converter 1 Output 12V 4.5A 18V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series UWS
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 4.5A
Power (Watts) 54 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 91%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/16 Brick
Size / Dimension 1.31" L x 0.91" W x 0.36" H (33.3mm x 23.1mm x 9.1mm)
Control Features Enable, Active Low
Base Product Number UWS-12
Standard Package 128
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1337658-UWS-12/4.5-Q48N-C
Ultra Librarian 3D Model Ultra Librarian UWS-12/4.5-Q48N-C CAD Model

Description

The UWS series isolated module is a power supply board mount DC-DC converter designed by Murata Power Solutions Inc.

  • Power: 54W
  • Features: Remote On/Off, UVLO
  • Package: Tray
  • Size Dimension: 1.31" L x 0.91" W x 0.36" H (33.3mm x 23.1mm x 9.1mm)
  • Outputs: Single
  • Maximum Current Output: 4.5A
  • Input Voltage: 18V to 75V
  • Voltage Isolation: 2.25 kV
  • Efficiency: 91%
  • Application: ITE (Commercial)
  • ECCN: EAR99
