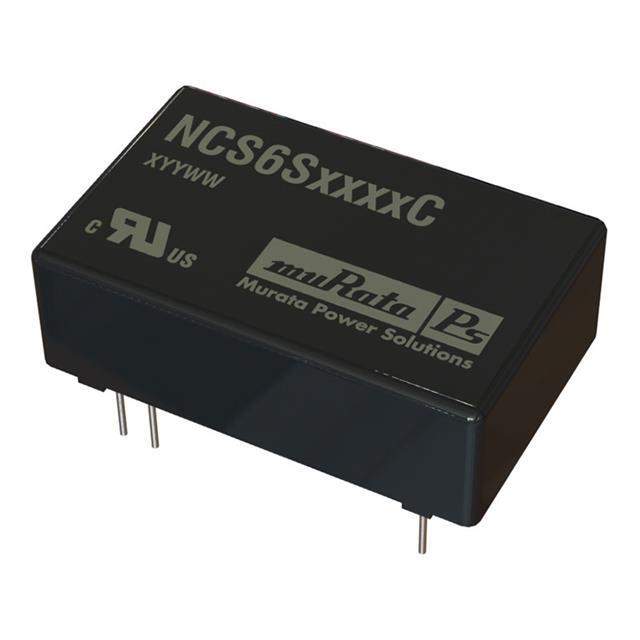

NCS6S4805C Real Image
Same model may have multiple batches, images only for reference.

NCS6S4805C

Part No NCS6S4805C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description Isolated 6W 4:1 Input Single Output DC/DC Converters
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NCS6
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 18V
Voltage Input MAX 75V
Voltage - Output 1 5V
Current - Output (Maximum) 1.2A
Power (Watts) 6W
Voltage - Isolation 1.5kV (1500V)
Applications ITE (Commercial)
Operating Temperature Range -40°C ~ 85°C
Efficiency 80%
Mounting Style Through Hole
Package 24-DIP Module (600 mil, 7 Leads)
Size 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.1mm x 9.9mm)
Win Source Part Number 1230538-NCS6S4805C
Manufacturer Homepage www.murata-ps.com
Popularity Medium
Supply and Demand Status Limited
Family Name NCS6S4805C
Introduction Date June 17, 2009
Country of Origin China
Halogen Free Unknown
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian NCS6S4805C CAD Model

Description

The Murata Power Solutions Inc. NCS6S4805C is an isolated module that is part of the NCS6 series.

  • Voltage Isolation: 1.5kV
  • Output Voltage: 5V
  • Efficiency: 80%
  • Maximum Output Current: 1.2A
  • Power Rating: 6W
  • Package: 24-DIP module (600 mil, 7 Leads)
  • Operating Temperature Range: -40°C ~ 85°C
