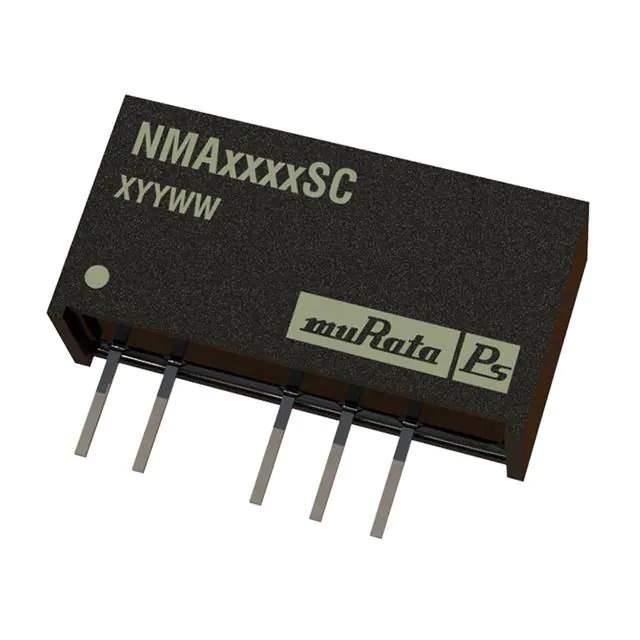

Same model may have multiple batches, images only for reference.

NMA0509SC

Name: NMA0509SC
Brand: Murata Power Solutions Inc.
SKU: 649106
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NMA0509SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-9V 1W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NMA (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	9V
Voltage - Output 2	-9V
Current - Output (Max)	55mA, 55mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	75%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
Base Product Number	NMA05
Standard Package	25 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	649106-NMA0509SC
Ultra Librarian 3D Model	Ultra Librarian NMA0509SC CAD Model

Alternative Products

Description

The NMA0509SC is a power supply module designed for board mount applications.

Series: NMA
Type: 1W isolated module
Voltage Isolation: 1 kV
Outputs: Two outputs
Maximum Output Current: 55mA each
Input Voltage Range: 4.5V to 5.5V
Output Voltages: 9V and -9V
Size: 0.77" L x 0.24" W x 0.39" H
Mounting: Through-hole
Application: ITE (Commercial)
Package: 25 pcs
Efficiency: 75%
Operating Temperature: -40°C to 85°C
Manufacturer: Murata Power Solutions Inc.
