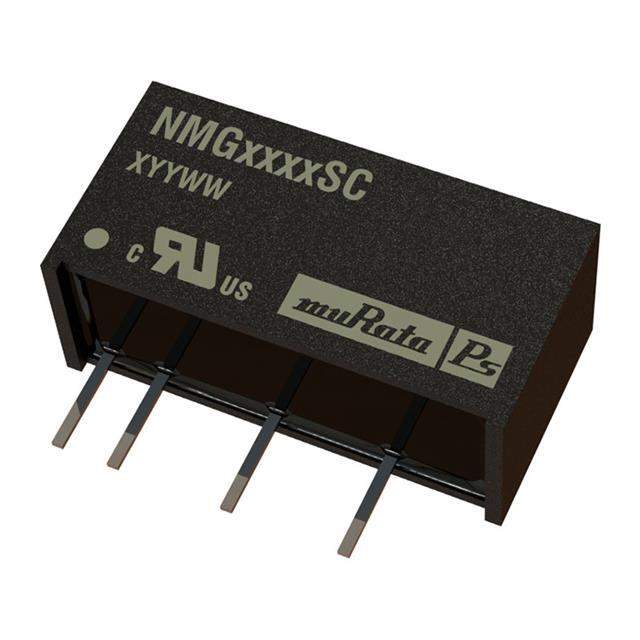

Same model may have multiple batches, images only for reference.

NMG1515SC

Name: NMG1515SC
Brand: Murata Power Solutions Inc.
SKU: 1078587
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NMG1515SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 2W / Isolated Module DC DC Converter 1 Output 15V 133mA 13.5V - 16.5V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NMG (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	13.5V
Voltage - Input (Max)	16.5V
Voltage - Output 1	15V
Current - Output (Max)	133mA
Power (Watts)	2 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	88%
Mounting Type	Through Hole
Package / Case	6-SIP Module, 4 Leads
Dimension	0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Base Product Number	NMG15
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	811-2690
Standard Package	25
Win Source Part Number	1078587-NMG1515SC
Ultra Librarian 3D Model	Ultra Librarian NMG1515SC CAD Model

Alternative Products

Description

The NMG1515SC is an isolated module DC-DC converter manufactured by Murata Power Solutions Inc.

Power Output: 2W
Efficiency: 88%
Mounting: Through-Hole
Package/Case: 6-SIP Module, 4 Leads
Operating Temperature: -40°C to 85°C
REACH: Not Affected
MSL Level: 1 (Unlimited)
