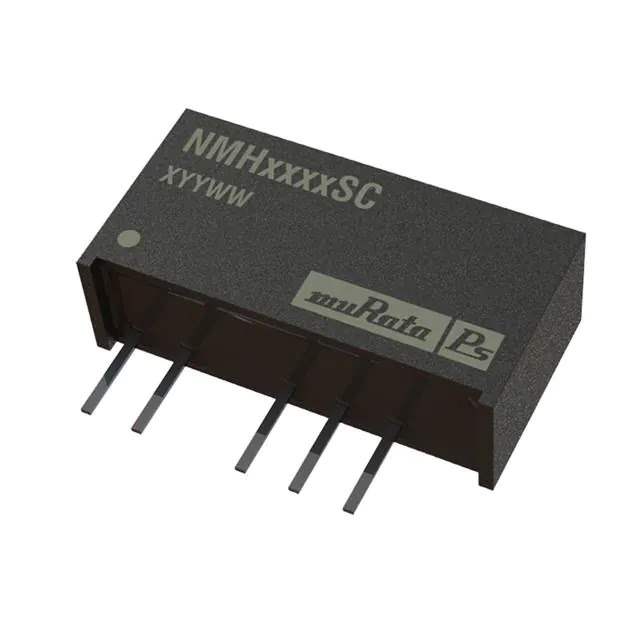

NMH0509SC

Part No NMH0509SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMH (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Max) 111mA, 111mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 81%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Base Product Number NMH05
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649152-NMH0509SC
Ultra Librarian 3D Model Ultra Librarian NMH0509SC CAD Model

Description

The NMH0509SC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc. It belongs to the NMH series, designed for power supplies in board mount applications.

  • Power: 2W
  • Size: 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
  • Package: Tube
  • Voltage Isolation: 1 kV
  • Number of Outputs: 2
  • Maximum Output Current: 111mA each
  • Input Voltage: 4.5V to 5.5V
  • Output Voltage: 9V and -9V
  • Efficiency: 81%
  • Operating Temperature: -40°C to 85°C
  • Application: ITE (Commercial)
  • Standard Package: 25 pcs
  • Mounting: Through-Hole
  • Product Status: Active
