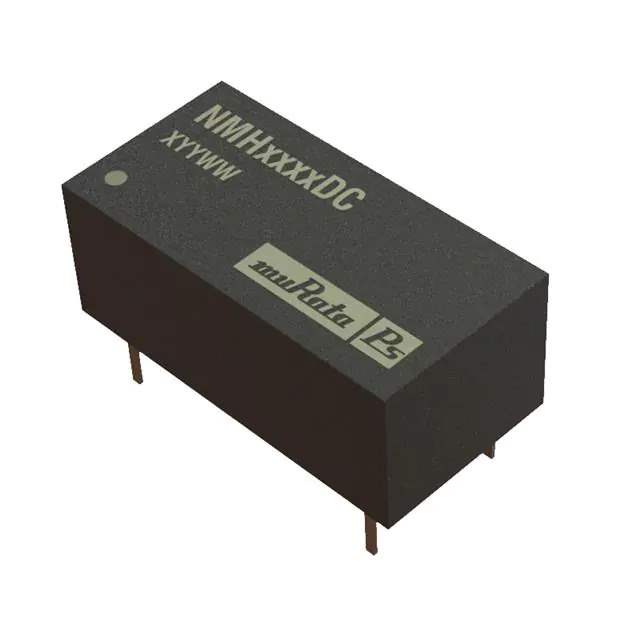

Same model may have multiple batches, images only for reference.

NMH1215DC

Name: NMH1215DC
Brand: Murata Power Solutions Inc.
SKU: 649158
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NMH1215DC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 2W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NMH (2W)
Package	Tube
Product Status	Last Time Buy
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	67mA, 67mA
Power (Watts)	2 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	84%
Mounting Type	Through Hole
Package / Case	14-DIP Module, 6 Leads
Size / Dimension	0.77" L x 0.39" W x 0.30" H (19.6mm x 9.9mm x 7.6mm)
Base Product Number	NMH12
Standard Package	25 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	649158-NMH1215DC
Ultra Librarian 3D Model	Ultra Librarian NMH1215DC CAD Model

Alternative Products

Description

The 649158-NMH1215DC is a 2W power supply DC-DC converter module from Murata Power Solutions Inc.

Series: NMH
Type: 2W Isolated Module
Application: ITE (Commercial)
Package Size: 0.77" L x 0.39" W x 0.30" H (19.6mm x 9.9mm x 7.6mm)
Mounting Type: Through-Hole
Outputs: 2
Maximum Output Current: 67mA each
Input Voltage Range: 10.8V to 13.2V
Output Voltages: 15V and -15V
Efficiency: 84%
Voltage Isolation: 1 kV
Operating Temperature: -40°C to 85°C
Package: 14-DIP Module, 6 Leads
Status: Last Time Buy Product
