Same model may have multiple batches, images only for reference.

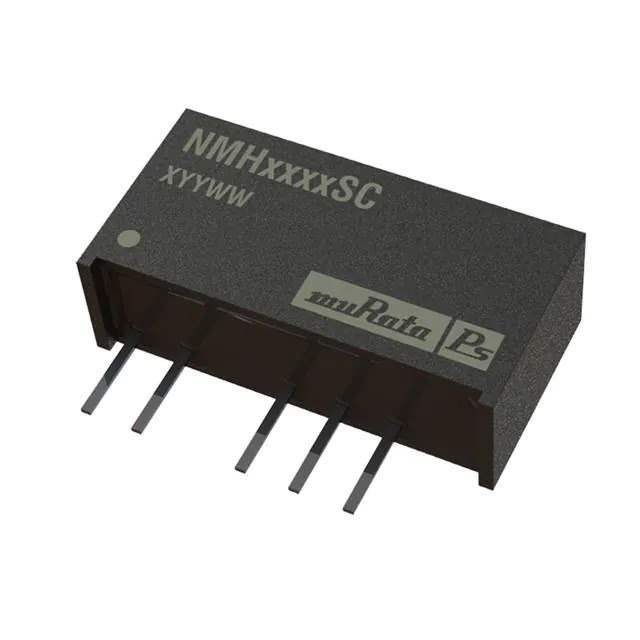

NMH2405SC Real Image
Same model may have multiple batches, images only for reference.

NMH2405SC

Part No NMH2405SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMH (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 200mA, 200mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 81%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Base Product Number NMH24
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649161-NMH2405SC
Ultra Librarian 3D Model Ultra Librarian NMH2405SC CAD Model

Description

The NMH2405SC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NMH
  • Application: Power Supplies in Board Mount Applications
  • Size: 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
  • Voltage Isolation: 1 kV
  • Outputs: Two
  • Maximum Output Current: 200mA for each output
  • Input Voltage Range: 21.6V to 26.4V
  • Output Voltage: 5V and -5V
  • Efficiency: 81%
  • Package: 7-SIP module with 5 leads
  • Mounting: Through-Hole
  • Operating Temperature Range: -40°C to 85°C
  • Compliance: REACH
  • HTSUS Code: 8504.40.9580
  • Overall: Reliable and efficient DC-DC converter that provides stable power conversion for ITE (Commercial) applications.
