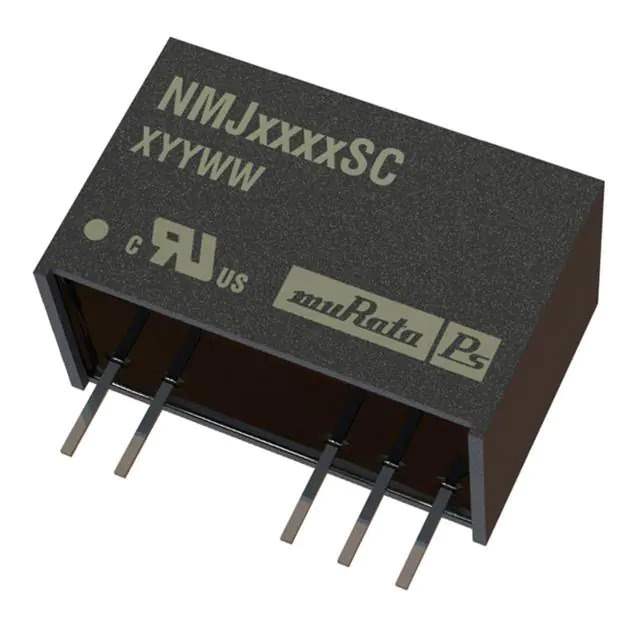

Same model may have multiple batches, images only for reference.

NMJ1205SC

Name: NMJ1205SC
Brand: Murata Power Solutions Inc.
SKU: 649170
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NMJ1205SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 1W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NMJ (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	100mA, 100mA
Power (Watts)	1 W
Voltage - Isolation	5.2 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 60°C
Efficiency	60%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm)
Base Product Number	NMJ12
Standard Package	25 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	649170-NMJ1205SC
Ultra Librarian 3D Model	Ultra Librarian NMJ1205SC CAD Model

Alternative Products

Description

The NMJ1205SC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

Series: NMJ
Designed for: Power supplies in board mount applications
Voltage Isolation: 5.2 kV
Outputs: Two
Maximum Output Current: 100mA each
Input Voltage Range: 10.8V to 13.2V
Output Voltages: 5V and -5V
Efficiency: 60%
Suitable for: ITE (Commercial) applications
Package: 7-SIP module
Operating Temperature: -40°C to 60°C
