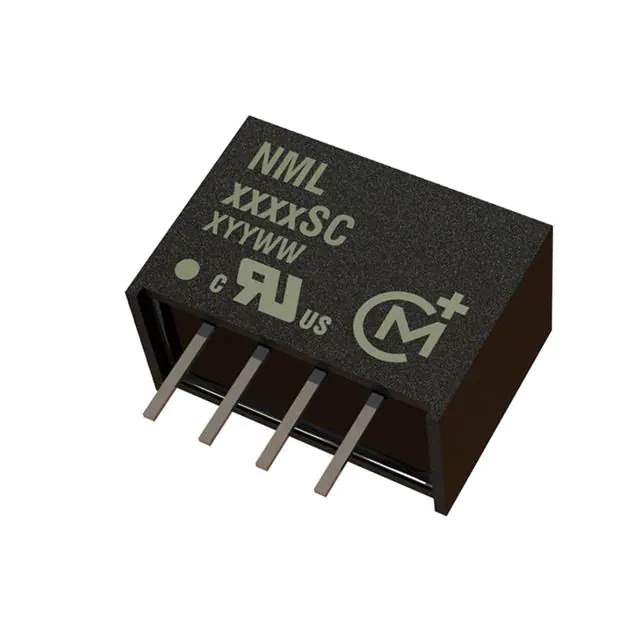

NML0509SC Real Image
Same model may have multiple batches, images only for reference.

NML0509SC

Part No NML0509SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 9V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NML (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 9V
Current - Output (Max) 222mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 81%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.55" L x 0.30" W x 0.39" H (14.0mm x 7.6mm x 9.9mm)
Base Product Number NML05
Standard Package 35 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649187-NML0509SC
Ultra Librarian 3D Model Ultra Librarian NML0509SC CAD Model

Description

The NML0509SC is a 2W isolated module DC-DC converter designed for power supplies in commercial applications.

  • Voltage Isolation: 1 kV
  • Maximum Output Current: 222mA
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage: 9V
  • Efficiency: 81%
  • Package: 4-SIP module
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Murata Power Solutions Inc.
  • Package Quantity: 35 pcs
  • Series: NML
