Same model may have multiple batches, images only for reference.

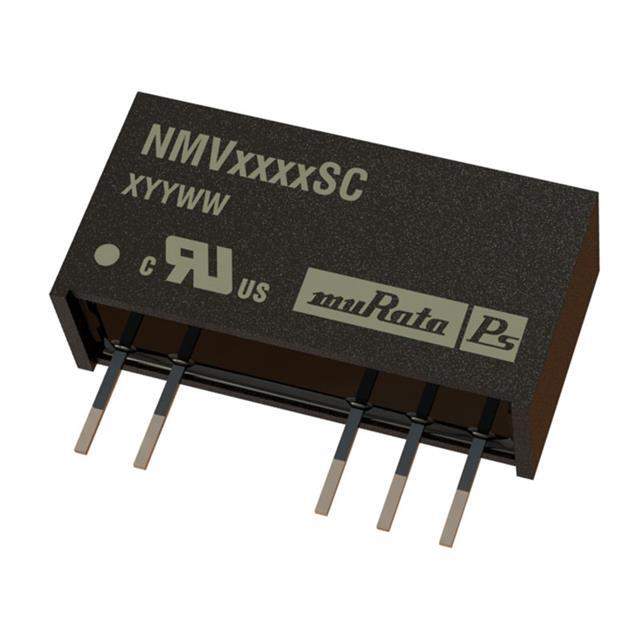

NMV0515SC Real Image
Same model may have multiple batches, images only for reference.

NMV0515SC

Part No NMV0515SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 5VIN 15VOUT SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Power Solutions Inc.
Standard Package 25
Category Power Supplies - Board Mount
Family DC DC Converters
Series NMV
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 33mA 33mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 7-SIP Module (5 Leads)
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 79%
Power (Watts) - Max 1W
Catalog NMV Series
Win Source Part Number 085999-NMV0515SC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Power Management, Industrial
Ultra Librarian 3D Model Ultra Librarian NMV0515SC CAD Model

Description

The Murata Power Solutions Inc. 085999-NMV0515SC is a high-popularity electronic component that belongs to the DC DC Converters family.

  • Type: Isolated Module
  • Packaging: Tube
  • Mounting Style: Through Hole
  • Size/Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
  • Outputs: Two
  • Output Current (Max): 33mA
  • Voltage Input Range: From 4.5V to 5.5V
  • Voltage Output 1: 15V
  • Voltage Output 2: -15V
  • Power (Watts) - Manufacture Series: 1W
  • Efficiency: 79 percent
  • Voltage Isolation: 3kV (3000V)
  • Standard Package: 25
  • Applications: Power Management, Industrial Applications
