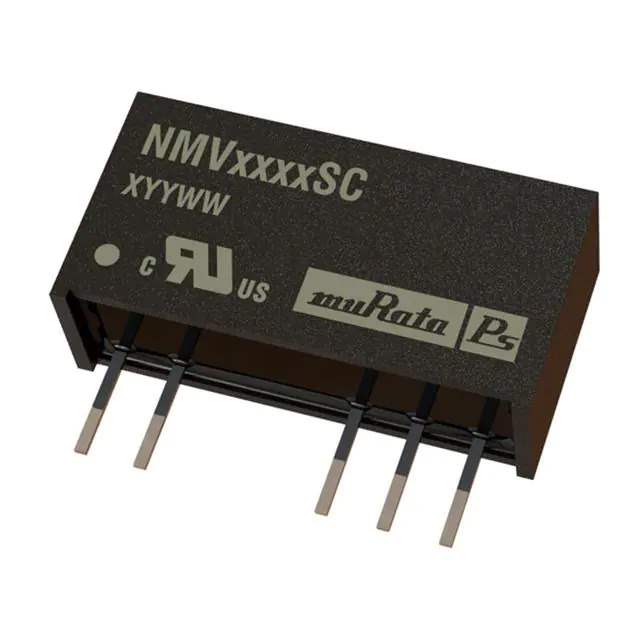

NMV1212SC Real Image
Same model may have multiple batches, images only for reference.

NMV1212SC

Part No NMV1212SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMV (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA, 42mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 75%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Base Product Number NMV12
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649213-NMV1212SC
Ultra Librarian 3D Model Ultra Librarian NMV1212SC CAD Model

Description

The NMV1212SC is a 1W isolated module DC-DC converter from the NMV series by Murata Power Solutions Inc. The NMV1212SC is manufactured by Murata Power Solutions Inc.

  • Series: NMV series
  • Power: 1W isolated module
  • Application: power supplies in board mount applications
  • Application: power supplies of commercial information technology equipment (ITE)
  • Package Dimensions: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
  • Outputs: two outputs
  • Maximum Output Current: 42mA each
  • Input Voltage Range: 10.8V to 13.2V
  • Output Voltages: 12V and -12V
  • Voltage Isolation: 3 kV
  • Efficiency: 75%
  • Mounting: through-hole
  • Operating Temperature: -40°C to 85°C
  • Status: active product
