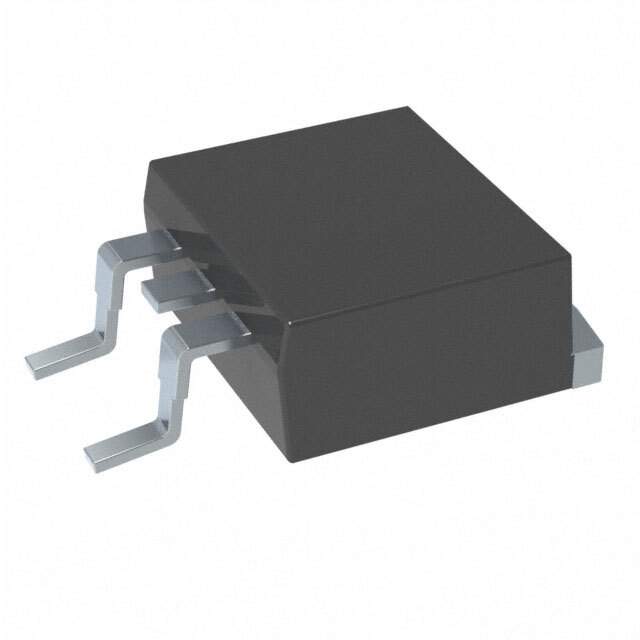

MBR20100DC_R2_00001 Real Image
Same model may have multiple batches, images only for reference.

MBR20100DC_R2_00001

Part No MBR20100DC_R2_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Arrays
Description 20 AMPERS SCHOTTKY BARRIER RECTI  /  Diode Array 1 Pair Common Cathode Schottky 100 V 20A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Datasheet
MBR20100DC_R2_00001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Panjit International Inc.
Series MBR2040DC
Package Tape & Reel
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 800 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 100 V
Operating Temperature - Junction -50°C ~ 150°C
Mounting SMD (SMT)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-MBR20100DC_R2_00001TR,3757-MBR20100DC_R2_00001CT,3757-MBR20100DC_R2_00001DKR
Standard Package 800
Win Source Part Number 1076499-MBR20100DC_R2_00001
Ultra Librarian 3D Model Ultra Librarian MBR20100DC_R2_00001 CAD Model

Description

The MBR20100DC_R2_00001 from Panjit International Inc. is a Schottky diode array that belongs to the discrete semiconductor products category. The supply and demand status of the product is unlimited.

  • Recovery Time: less than 500ns
  • Maximum Forward Voltage Drop: 800mV @ 10A
  • High Average Rectified Current: 20A
