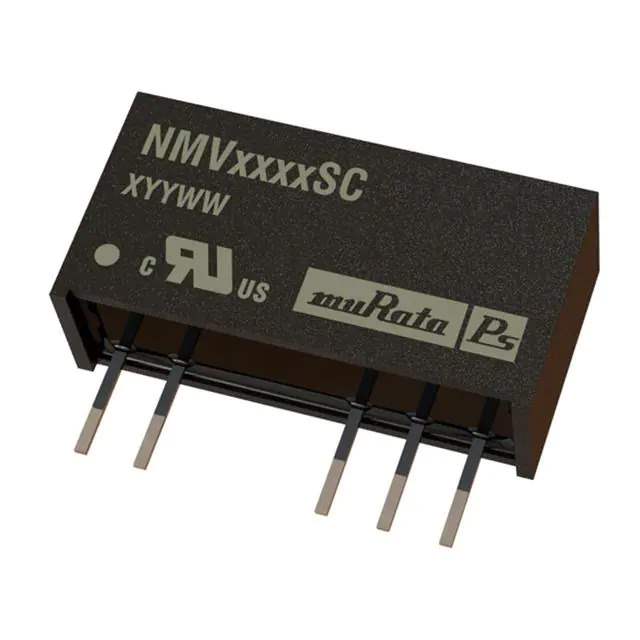

Same model may have multiple batches, images only for reference.

NMV1215SC

Name: NMV1215SC
Brand: Murata Power Solutions Inc.
SKU: 649216
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NMV1215SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 1W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NMV (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	33mA, 33mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	76%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Base Product Number	NMV12
Standard Package	25 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	649216-NMV1215SC
Ultra Librarian 3D Model	Ultra Librarian NMV1215SC CAD Model

Alternative Products

Description

The NMV1215SC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

Series: NMV series
Power: 1W
Application: power supplies in board mount applications.
Outputs: two
Maximum Output Current: 33mA each
Input Voltage Range: 10.8V to 13.2V
Output Voltage: 15V and -15V
Voltage Isolation: 3 kV
Efficiency: 76%
Package: 7-SIP module with 5 leads
Temperature Range: -40°C to 85°C
Application: ITE (Commercial)
Standard Package: 25 pcs
