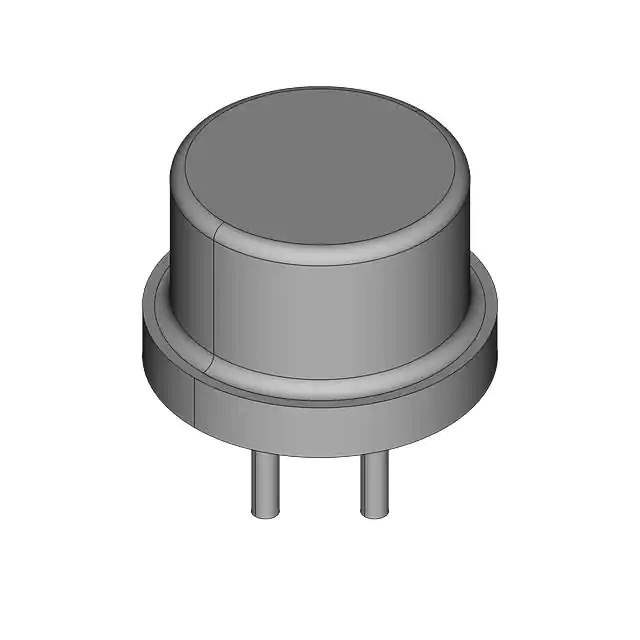

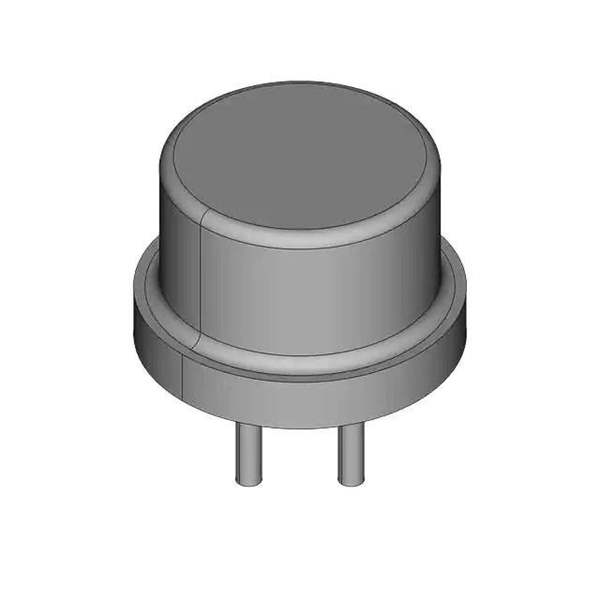

LM120K-15 Real Image
Same model may have multiple batches, images only for reference.

LM120K-15

Part No LM120K-15
Manufacturer National Semiconductor (TI)
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR FIXED STNDRD REG
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr National Semiconductor (TI)
Package Bulk
Product Status Active
Output Configuration Negative
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) -25V
Voltage - Output (Min/Fixed) -15V
Current - Output 1A
Current - Quiescent (Iq) 4 mA
PSRR 56dB (120Hz)
Protection Features Over Current, Over Temperature
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-204AA, TO-3
Supplier Device Package TO-3-2
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 614090-LM120K-15
Ultra Librarian 3D Model Ultra Librarian LM120K-15 CAD Model

Description

The LM120K-15 is a linear voltage regulator from National Semiconductor (TI).

  • Output Type: Negative
  • Output Voltage: -15V
  • Current Output: 1A
  • Temperature Range: -55°C to 150°C
  • Protection: Overcurrent and over-temperature
  • Mounting Type: Through-Hole
  • Package: TO-204AA, TO-3
  • Voltage Input: Up to -25V
  • PSRR: 56dB @ 120Hz
  • Status: Active
