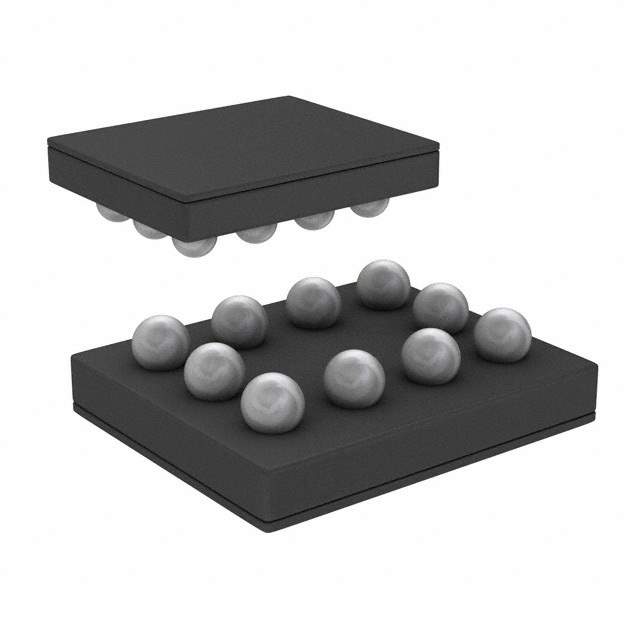

The LM3200TLX is a high-efficiency, fixed-frequency boost regulator designed for powering white LEDs in portable applications. Manufactured by National Semiconductor, which is now part of Texas Instruments (TI), this regulator offers a compact solution for driving multiple LEDs with consistent brightness and high efficiency. Its key features include a small footprint, high switching frequency, and integrated protection features.

Applications:

• Cellular Phones: Backlighting for LCD displays and keypads.
• PDAs and Handheld Devices: Providing consistent illumination for screens.
• Digital Cameras: Powering the flash LED and display backlights.
• MP3 Players: Lighting the LCD screen for user interface.
• Portable Gaming Devices: Backlighting for gaming displays.

Features:

• High Efficiency: Achieves high efficiency (typically over 80%) to maximize battery life.
• Fixed Frequency Operation: Operates at a fixed switching frequency, which simplifies noise filtering.
• Integrated Schottky Diode: An integrated Schottky diode reduces external component count and simplifies the design.
• Low Shutdown Current: Minimizes power consumption when the device is disabled.
• Over-Voltage Protection (OVP): Protects the LEDs and the regulator from damage due to over-voltage conditions.
• Small Solution Size: Compact package and minimal external components enable a small solution size.

Benefits:

• Extended Battery Life: High efficiency translates to longer battery life in portable applications.
• Simplified Design: Integrated features reduce component count and simplify the design process.
• Consistent LED Brightness: Regulated output current ensures consistent brightness across multiple LEDs.
• Small Footprint: Compact package allows for integration into space-constrained applications.
• Robust Protection: Over-voltage protection safeguards the device and the LEDs from damage.

The LM3200TLX is designed to drive LEDs in a series configuration, ensuring uniform current distribution and brightness. It uses a current-mode control architecture, which provides stable operation and fast transient response. The integrated Schottky diode further improves efficiency and reduces the overall solution size. In summary, the LM3200TLX offers a highly efficient and compact solution for powering white LEDs in a variety of portable devices, balancing performance, size, and power efficiency.
