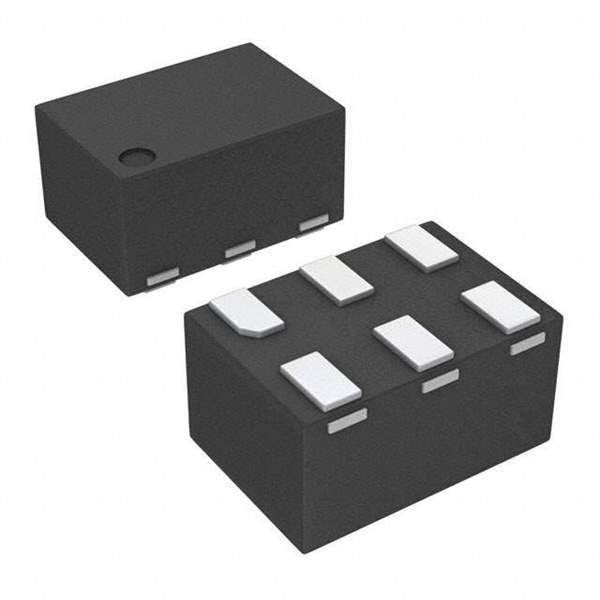

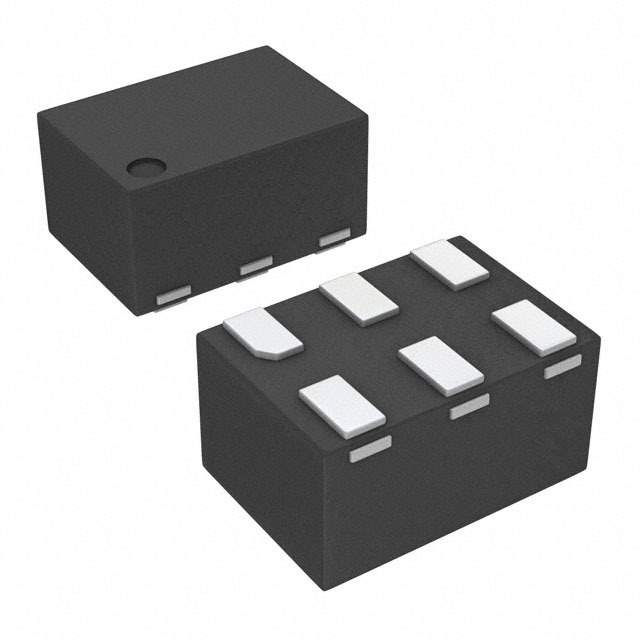

The LM3671LCX-1.8 is a step-down DC-DC converter manufactured by National Semiconductor, now part of Texas Instruments (TI). It's designed to provide a highly efficient and compact power solution for various portable applications. The converter steps down a higher input voltage to a fixed 1.8V output voltage.

Applications

• Mobile Phones: Powering core logic and other components in mobile phones.
• PDAs (Personal Digital Assistants): Providing efficient power for PDA processors and peripherals.
• Portable Media Players: Supplying regulated power to the audio and video processing units.
• Digital Cameras: Powering image sensors and other digital camera circuitry.
• GPS Devices: Providing efficient power for GPS receivers and navigation systems.

Features

• High Efficiency: Achieves high efficiency, minimizing power loss and extending battery life.
• Fixed 1.8V Output Voltage: Provides a stable and regulated 1.8V output voltage.
• Low Dropout Voltage: Operates with a low input-to-output voltage difference.
• Small Solution Size: Compact package for space-constrained applications.
• Over-Temperature Protection: Protects the device from thermal damage.

Benefits

• Extended Battery Life: High efficiency minimizes power consumption, extending battery life.
• Stable Power Supply: Provides a stable and regulated output voltage for sensitive components.
• Compact Design: Small package allows for integration into space-constrained devices.
• Reliable Operation: Over-temperature protection ensures reliable operation under various conditions.
• Simplified Design: Reduces the complexity of power supply design.

Additional Details

The LM3671LCX-1.8 typically operates with a high switching frequency to minimize the size of external components. It incorporates internal compensation to simplify the design and reduce the number of external components required. The device is available in a small package, such as a LLP or micro SMD package, to minimize the overall solution size. Specific switching frequency and input voltage range will vary by part number.
