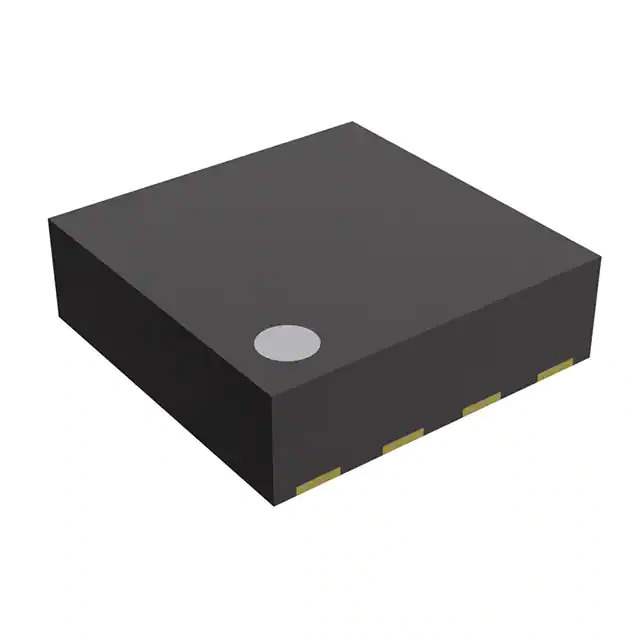

RP150K006A-TR Real Image
Same model may have multiple batches, images only for reference.

RP150K006A-TR

Part No RP150K006A-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR POS ADJ 300MA 8DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series RP150K
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Adjustable
Number of Regulators 2
Voltage - Input (Max) 5.25V
Voltage - Output (Min/Fixed) 1.5V
Voltage - Output (Max) 3.3V
Voltage Dropout (Max) 1V @ 300mA
Current - Output 300mA, 300mA
Current - Quiescent (Iq) 33 µA
PSRR 80dB (1kHz)
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-UFDFN Exposed Pad
Supplier Device Package DFN(PL)2020-8
Base Product Number RP150
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 298388-RP150K006A-TR
Ultra Librarian 3D Model Ultra Librarian RP150K006A-TR CAD Model

Description

The RP150K is a linear voltage regulator designed for power management applications. It is part of the RP150K series from Nisshinbo Micro Devices Inc.

  • Current Output: 300mA each
  • Number of Regulators: 2
  • Enable Control: Yes
  • Over Current Protection: Yes
  • Maximum Input Voltage: 5.25V
  • Output Voltage: Adjustable from 1.5V to 3.3V
  • Mounting Type: Surface Mount
  • Package / Case: 8-UFDFN Exposed Pad
  • Operating Temperature: -40°C to 85°C
  • Quiescent Current: 33μA
  • PSRR: 80dB @ 1kHz
  • Product Status: Active
  • Voltage Dropout: 1V @ 300mA
