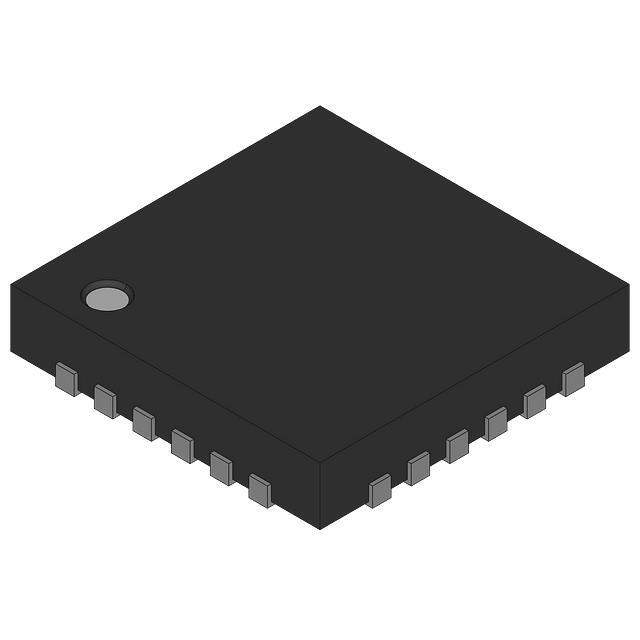

LMX2330USLBX Real Image
Same model may have multiple batches, images only for reference.

LMX2330USLBX

Part No LMX2330USLBX
Manufacturer National Semiconductor (TI)
Catalog Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Description PLL FREQUENCY SYNTHESIZER / PLL Frequency Synthesizer IC 2.5GHz, 600MHz 1 24-TFQFN, CSP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Mfr National Semiconductor
Series PLLatinum™
Package Bulk
Product Status Obsolete
Type PLL Frequency Synthesizer
PLL Yes with Bypass
Input CMOS, TTL
Output CMOS
Number of Circuits 1
Frequency - Max 2.5GHz, 600MHz
Divider/Multiplier Yes/No
Voltage - Supply 2.7V ~ 5.5V
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 24-TFQFN, CSP
Supplier Device Package 24-CSP (4.5x3.5)
RoHS Status RoHS non-compliant
ECCN EAR99
HTSUS 8542.39.0001
Other Names NATNSCLMX2330USLBX,2156-LMX2330USLBX-NSTR-ND,2156-LMX2330USLBX
Standard Package 2,500
Win Source Part Number 996638-LMX2330USLBX
Ultra Librarian 3D Model Ultra Librarian LMX2330USLBX CAD Model

Description

The National Semiconductor LMX2330USLBX is an obsolete PLL frequency synthesizer integrated circuit used for clock/timing applications. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Package: 24-TFQFN, CSP
  • Voltage Supply Range: 2.7V to 5.5V
  • RoHS Compliant: No
  • Win Source Part Number: 996638-LMX2330USLBX
