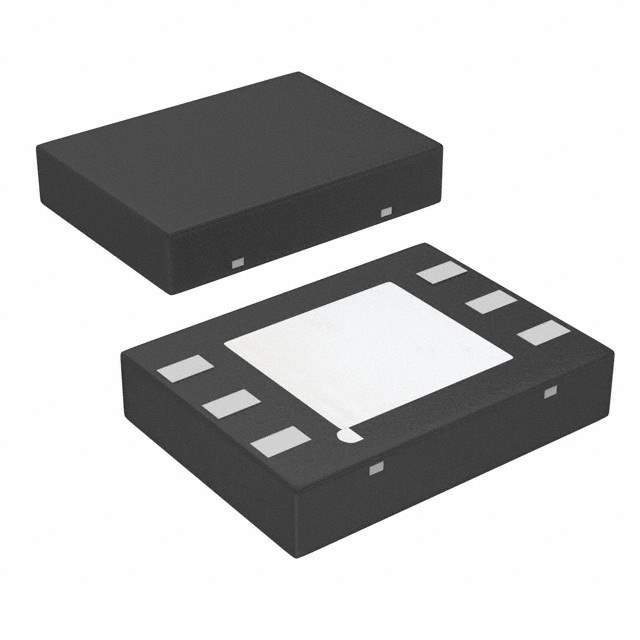

The LP8340CLD-ADJ is an adjustable output, low-dropout (LDO) linear regulator from National Semiconductor (now Texas Instruments). This LDO is designed to provide a stable and adjustable output voltage from a wide range of input voltages, while maintaining low dropout voltage and high efficiency. It's ideal for use in battery-powered devices, portable equipment, and other applications requiring efficient power management.

Applications:

• Battery-Powered Devices: Used in battery-powered devices for efficient voltage regulation.
• Portable Equipment: Employed in portable equipment for stable and adjustable output voltage.
• Post Regulation for Switching Supplies: Applied as a post regulator to reduce ripple and noise from switching power supplies.
• Microprocessor Power Supplies: Utilized in microprocessor power supplies for providing stable voltage.
• Power Management Systems: Used in power management systems for efficient voltage regulation.

Features:

• Adjustable Output Voltage: Provides an adjustable output voltage via external resistors.
• Low Dropout Voltage: Maintains regulation with a low input-to-output voltage differential.
• High Efficiency: Offers high efficiency for minimizing power dissipation.
• Overcurrent Protection: Protects the regulator from damage due to overcurrent conditions.
• Thermal Shutdown: Shuts down the regulator when the junction temperature exceeds a safe limit.

Benefits:

• Flexible Output Voltage: Adjustable output voltage allows for customization to specific application requirements.
• Efficient Power Management: Low dropout voltage and high efficiency minimize power dissipation.
• Enhanced System Reliability: Overcurrent protection and thermal shutdown ensure safe and reliable operation.
• Simplified Circuit Design: Requires minimal external components for operation.
• Extended Battery Life: High efficiency extends battery life in portable devices.

Additional Details:

The LP8340CLD-ADJ operates by regulating the output voltage to a desired level, which is set by external resistors. The low dropout voltage allows the regulator to maintain regulation even when the input voltage is close to the output voltage. The high efficiency minimizes power dissipation, resulting in cooler operation and extended battery life. The built-in overcurrent protection and thermal shutdown features protect the regulator from damage due to electrical faults or excessive heat. The adjustable output voltage makes it suitable for a wide range of applications requiring precise voltage regulation.

It is commonly used in portable devices such as smartphones, tablets, and laptops. It also finds applications in industrial control systems and other electronic devices where efficient and reliable voltage regulation is required.
