Same model may have multiple batches, images only for reference.

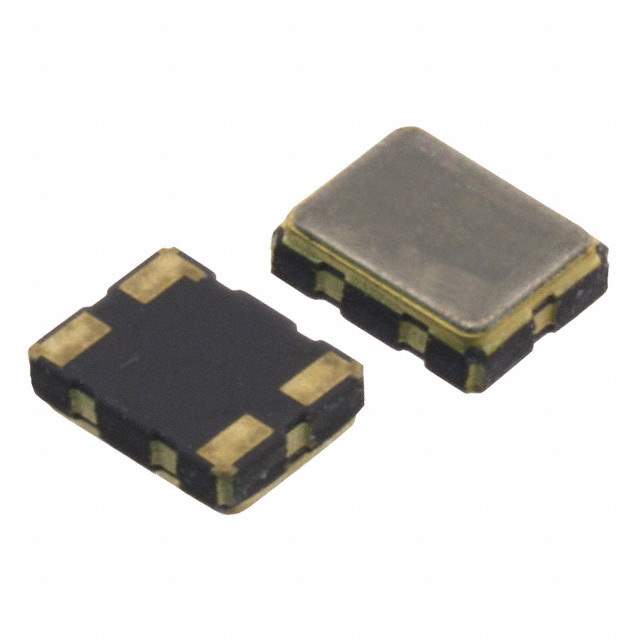

NT3225SA-19.2M-DJA3002B Real Image
Same model may have multiple batches, images only for reference.

NT3225SA-19.2M-DJA3002B

Part No NT3225SA-19.2M-DJA3002B
Manufacturer NDK
Catalog Oscillators
Description XTAL OSC TCXO 19.2000MHZ SNWV / 19.2 MHz TCXO Clipped Sine Wave Oscillator 2.8V 4-SMD, No Lead
Datasheet
NT3225SA-19.2M-DJA3002B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr NDK America, Inc.
Series NT3225SA
Package Tape & Reel
Base Resonator Crystal
Type TCXO
Frequency 19.2 MHz
Output Clipped Sine Wave
Voltage - Supply 2.8V
Frequency Stability ±2.5ppm
Temperature Range - Operating -30°C ~ 75°C
Current - Supply (Max) 1.5mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 644-1090-6,END3574C,NT3225SA-19.200000MHZ-T2,644-1090-2,50157446,DJA3002B,644-1090-1,DJA3002A,NT3225SA19200000MHZT2
Standard Package 2,000
Win Source Part Number 1082831-NT3225SA-19.2M-DJA3002B
Ultra Librarian 3D Model Ultra Librarian NT3225SA-19.2M-DJA3002B CAD Model

Description

The NT3225SA-19.2M-DJA3002B TCXO oscillator from NDK America, Inc. is a high-quality component for use in crystals, oscillators, and resonators applications.

  • Frequency: 19.2 MHz
  • Frequency Stability: ±2.5ppm
  • Output: Clipped Sine Wave
  • Current Supply: 1.5mA
  • Mounting: SMD (SMT)
  • Package/Case: 4-SMD, No Lead
  • Temperature Range: -30°C to 75°C
  • MSL Level: Unlimited
  • Alternative Cross-References: ASVTX-11-A-19.200MHZ-T, TG-5035CG-13N 19.2000M3, ASVTX-11-121-19.200MHZ-T, ASVTX-09-19.200MHZ-T, 532L25DT19M2000, and 520R20IA19M2000
