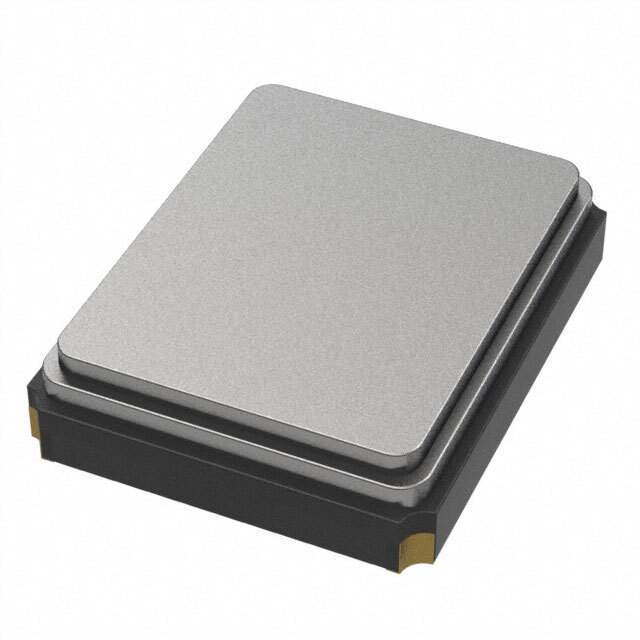

Same model may have multiple batches, images only for reference.
NX2016SA-52MHZ-EXS00A-CS07103 NDK America, Inc.
Same model may have multiple batches, images only for reference.

NX2016SA-52MHZ-EXS00A-CS07103

Part No NX2016SA-52MHZ-EXS00A-CS07103
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 52.0000MHZ 10PF SMD
Datasheet
NX2016SA-52MHZ-EXS00A-CS07103 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201820-NX2016SA-52MHZ-EXS00A-CS07103
Manufacturer NDK America, Inc.
Category Crystals, Oscillators, Resonators -Crystals
Series NX2016SA
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Frequency 52 MHz
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian NX2016SA-52MHZ-EXS00A-CS07103 CAD Model

Description

The 1201820 is a crystal oscillator manufactured by NDK America, Inc. Bold the product name (e.g., BAV99S,135 → 1201820) and manufacturer (e.g., Nexperia USA Inc. → NDK America, Inc.).

  • Category: Crystals, Oscillators, Resonators - Crystals
  • Series: NX2016SA series
  • Package: Tape & Reel (TR) and Cut Tape (CT)
  • Frequency: 52 MHz
  • ESR (Equivalent Series Resistance): 50 Ohms
  • Load Capacitance: 10pF
  • Temperature Range: -40°C to 125°C
  • Product Status: Active
  • Mounting Type: Surface Mountable
