Same model may have multiple batches, images only for reference.

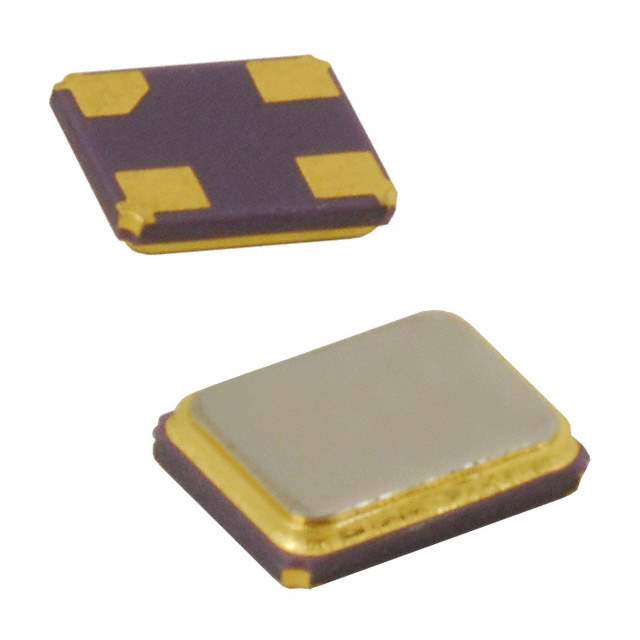

NX2520SA-40.000000MHZ Real Image
Same model may have multiple batches, images only for reference.

NX2520SA-40.000000MHZ

Part No NX2520SA-40.000000MHZ
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 40.0000MHZ 10PF SMD  /  40 MHz ±10ppm Crystal 10pF 40 Ohms 4-SMD, No Lead
Datasheet
NX2520SA-40.000000MHZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr NDK America, Inc.
Series NX2520SA
Package Tape & Reel
Type MHz Crystal
Frequency 40 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.026" (0.65mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Other Names NX2520SA-40.000000MHZ-STD-CSW-2,NX2520SA40000000MHZ,644-1066-6,NX2520SA-40.000M-STD-CSW-2,644-1066-2,644-1066-1
Standard Package 3,000
Win Source Part Number 1082982-NX2520SA-40.000000MHZ
Ultra Librarian 3D Model Ultra Librarian NX2520SA-40.000000MHZ CAD Model

Description

The NX2520SA is a MHz crystal that falls under the category of crystals, oscillators, and resonators.

  • Frequency: 40 MHz
  • Frequency Stability: ±10ppm
  • ESR (Equivalent Series Resistance): 40 Ohms
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 10pF
  • Mode: Fundamental
