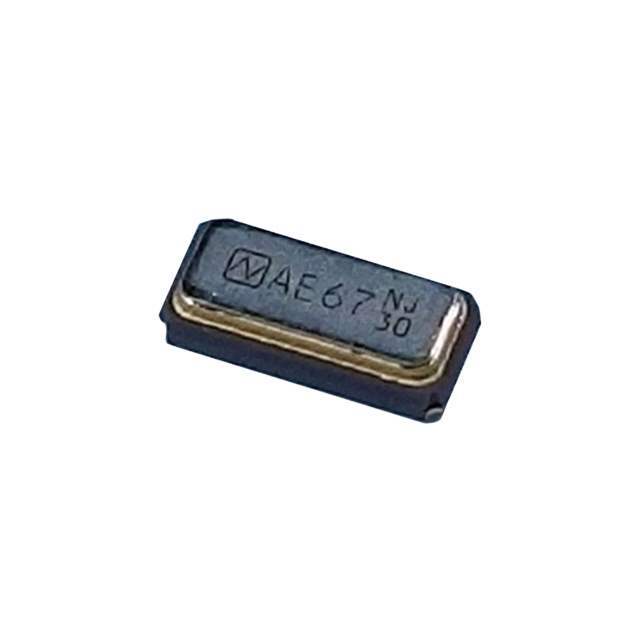

NX3215SE-32.768K-STD-MUA-19 NDK America, Inc.
Same model may have multiple batches, images only for reference.

NX3215SE-32.768K-STD-MUA-19

Part No NX3215SE-32.768K-STD-MUA-19
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 32.7680KHZ 6PF SMD
Datasheet
NX3215SE-32.768K-STD-MUA-19 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203951-NX3215SE-32.768K-STD-MUA-19
Manufacturer NDK America, Inc.
Category Crystals, Oscillators, Resonators -Crystals
Series NX3215SE
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Ultra Librarian 3D Model Ultra Librarian NX3215SE-32.768K-STD-MUA-19 CAD Model

Description

Tuning fork crystal unit with low ESR(Equivalent Series Resistance).
●Supports Microcontroller requiring low ESR. (ESR:Max. 40kΩ)
●Excellent electric performance optimum for mobile communications, OA (office automation) and AV (audiovisual) applications are exhibited.
●A surface-mount crystal oscillator. (Reflow soldering is possible.)
●Lead-free. Meets the requirements for re-flow profiling using lead-free solder.
